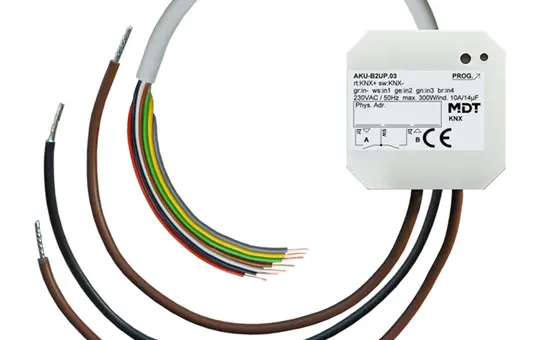

MDT AKU-B2UP.03 KNX universal actuator UP 2-fold, 4 inputs

MDT AKU-B2UP.03 KNX universal actuator UP | 2-fold, 4 inputs

Manufacturer: MDT
Article no.: 20003893
EAN: 4251916130497
Manufacturer item number: AKU-B2UP.03
Manufacturer type: AKU-B2UP.03
Weight: 0,048 kg
Available on request
85,86 €
incl. VAT + shipping
pcs
KNX universal actuator 2-fold, UP, 10 A, 230 V AC, 14 µF, 2 ECGs with 4 binary inputs. UP version with monostable relays. Current max. 10 A with ohmic load, 14 µF / 2EVG. With sun position calculation / shading. Can be used as a 2-way switching actuator or as a blind
Binary inputs integrated
Yes
Blinds
Yes
Brand
MDT
Capacitive load in µF
14
Class
Universal actuators
Different bus system
-
Division units
-
KNX
Yes
KNX-TP
Yes
Manufacturer item number
AKU-B2UP.03
Manufacturer type
AKU-B2UP.03
Mounting type
flush-mounted
Number of binary inputs
4
Number of blind outputs
1
Number of outputs
2
old Voltus number
1699855
Rated voltage outputs
230V AC
Switch
Yes
Type of transmission
Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt
Bedien- & Installationsanleitung
Manufacturer information
MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
