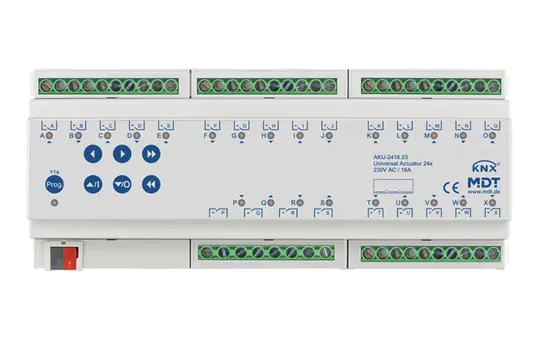

MDT AKU-2416.03 KNX Universal Actuator 24 times

MDT AKU-2416.03 KNX Universal Actuator | 24 times

Manufacturer: MDT
Article no.: 20003898
EAN: 4251916130480
Manufacturer item number: AKU-2416.03
Manufacturer type: AKU-2416.03
Weight: 0,785 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs

This is actually the only switching actuator you need. With its 4 channels, the MDT AKU-2416.03 offers you the possibility to control and automate various devices and functions in your home. Whether it’s lighting or blinds – with this actuator, you have full control over your home.



  • 24 independent channels for individual control
  • Compatible with the KNX bus system
  • Easy installation on DIN rail
  • Supports various functions such as switching, staircase lighting, blinds
  • Maximum current of 16 A per channel for high-power devices


  • Product class: Universal actuator
  • Manufacturer: MDT
  • Manufacturer type: AKU-2416.03
  • Bus system: KNX
  • Supply voltage: via KNX bus
  • Current consumption: 10 mA
  • Mounting type: DIN rail
  • Division units: 12
  • Output voltage: 230 V AC
  • Number of channels: 24
  • Maximum current: 16 A per channel (70 µF)
  • Functions: Switching, staircase lighting, scenes, blinds, roller shutters


The AKU-2416.03 is a versatile 24-channel universal actuator that integrates seamlessly into your smart home system. With its KNX interface, it enables simple and reliable control of various devices and functions in your home. The actuator has 24 outputs, each capable of carrying up to 16 A. This allows you to control your lighting or roller shutters individually, for example. Particularly practical is the option to operate the actuator manually via push buttons. Configuration is quick and easy via ETS software. With its wide range of applications and extensive functions, the AKU-2416.03 is the ideal solution for comfortable and efficient home automation. See for yourself the quality and reliability of this product!



The manufacturer MDT is an established provider of smart home systems and has established itself in the market as a reliable partner for building automation. With innovative solutions and high quality, MDT is known for its reliable and user-friendly products. Particularly noteworthy are the diverse application possibilities and the easy integration into existing systems. MDT impresses with its many years of experience and broad expertise in the field of building control.

BAB-Tec
No
Binary inputs integrated
No
Blinds
Yes
Bluetooth
No
Brand
MDT
Capacitive load in µF
100
Casambi
No
Class
Universal actuators
DALI
No
Different phases can be connected
Yes
Dimming
No
Division units
12 TE
ENOcean
No
Fan coil
No
free@home
No
Gira One
No
Hager KNXeasy
No
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
No
KNX-TP
Yes
Local/manual operation
Yes
Manufacturer item number
AKU-2416.03
Manufacturer type
AKU-2416.03
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
Series installation
Number of blind outputs
12
Number of outputs
24
Rated voltage outputs
230V AC
Shelly
No
Siemens LOGO!
No
Size of connection terminal in mm2
4
suitable for C load
No
Switch
Yes
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
