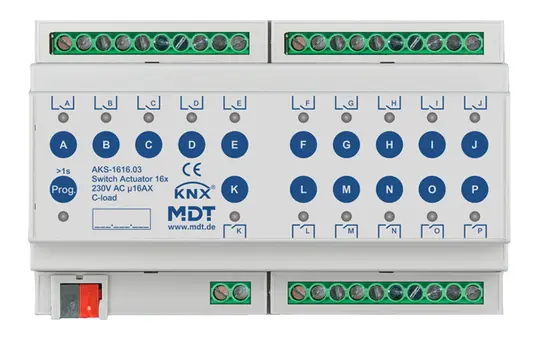

MDT AKS-1616.03 KNX Switching Actuator Standard 16 A | 16x

Manufacturer: MDT

Article no.: 20003889

EAN: 4251916130367

Manufacturer item number: AKS-1616.03

Manufacturer type: AKS-1616.03

Weight: 0,537 kg

In stock

Delivery: 2-3 business days

310,46 €

incl. VAT + shipping

pcs

The AKS-1616.03 is a high-quality KNX switching actuator designed for controlling electrical consumers in smart home systems. With a switching capacity of 16 A and 16 switching outputs, it offers a reliable and flexible solution for automating lighting and other electrical devices in residential and commercial properties.

The switching actuator is specifically designed for use in KNX installations and allows easy integration into existing systems. Thanks to its compact design and DIN rail mounting, it is space-saving and easy to install. Configuration is done via KNX software, enabling individual adaptation to the user’s needs

Features:

AKS-1616.03 for controlling electrical consumers in smart home systems
Switching capacity of 16 A and 16 switching outputs for reliable and flexible automation
Suitable for integration into KNX installations
Compact design and DIN rail mounting for easy installation
Configuration and control via KNX software for individual adaptation to user needs

Specifications:

Product type: KNX switching actuator
Switching capacity: 16 A
Number of switching outputs: 16
Power supply: via KNX bus
Current consumption: 10 mA
Protection rating: IP20
Mounting type: Flush mounting
Division units: 8

The AKS-1616.03 is a powerful and reliable switching actuator for integration into smart home systems. With a switching capacity of up to 16 A and 16 switching outputs, it offers a wide range of applications in home automation. Thanks to KNX technology, it is compatible with various systems and allows easy integration into existing setups. The switching actuator features relays capable of handling up to 140 μF. It also includes on and off delay modes, making it even more versatile in use. The AKS-1616.03 impresses with its high quality and durability, making it a reliable choice for home automation. With its numerous functions, it is an indispensable element for a modern and intelligent home.

The manufacturer MDT is an established player in the smart home systems market. It is especially known for its high-quality KNX products, which stand out due to their high functionality and reliability. MDT excels in customer advice and support, reflected in its extensive support offerings. With its innovative solutions and many years of experience, MDT is a reliable choice for anyone wanting to make their home smart and comfortable.

BAB-Tec: No
Binary inputs integrated: No
Bistable relays: Yes
Blinds: No
Bluetooth: No
Brand: MDT
Capacitive load in µF: 140
Casambi: No
Class: switching actuators
Current measurement: No
DALI: No
Dimming: No
Division units: 8 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
Inputs for potential-free contacts: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: AKS-1616.03
Manufacturer type: AKS-1616.03
Matter: No
max. switching current in A: 16
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Series installation
Number of outputs: 16
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
Size of connection terminal in mm2: 4
suitable for C load: Yes
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No
