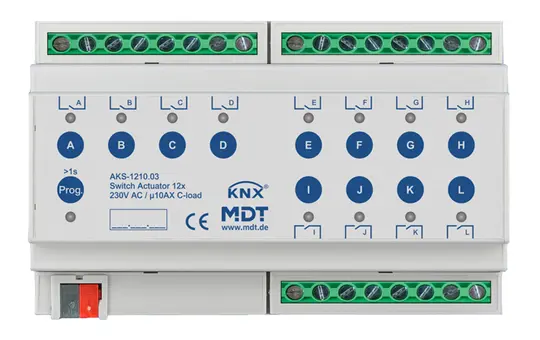

MDT AKS-1210.03 KNX Switching Actuator Standard 10 A | 12-fold

Manufacturer: MDT

Article no.: 20003881

EAN: 4251916130343

Manufacturer item number: AKS-1210.03

Manufacturer type: AKS-1210.03

Weight: 0,451 kg

In stock

Delivery: 2-3 business days

pcs

KNX Switching Actuator 12-fold, 8TE, REG, 10 A, 230 V AC, Capacitive Load, Standard, 140 µF.

Standard version with bistable relays

Maximum current 10 A, maximum capacitive load 140 µF.

Space-saving due to optimal form factor.

Extensive application.

Manual operation lockable and LED indicator per channel.

Normally closed and normally open operation.

Status feedback on manual operation.

Time functions (switch-on/switch-off delay, staircase lighting function).

Advanced logic and scene functions per channel.

Extended status functions (inverted, cyclic, on lock).

Threshold switch (Byte/2Byte/2Byte float).

Operating hour counter for switching.

Priority/forced control with automatic fallback time.

All L connections separated.

Supply voltage via KNX bus.

Fast application download (long frame support for ETS5).

3-year product warranty.

BAB-Tec: No
Binary inputs integrated: No
Bistable relays: Yes
Blinds: No
Bluetooth: No
Brand: MDT
Capacitive load in µF: 140
Casambi: No
Class: switching actuators
Current measurement: No
DALI: No
Dimming: No
Division units: 8 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
Inputs for potential-free contacts: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: AKS-1210.03
Manufacturer type: AKS-1210.03
Manufacturer's Description: KNX Switch Actuator 12-channel, 8 SU MDRC, 10 A, 230 V AC, C-load, standard, 140 μF
Matter: No
max. switching current in A: 10
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Series installation
Number of outputs: 12
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
Size of connection terminal in mm2: 4
suitable for C load: Yes
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Manual

Data Sheet

Manufacturer information

MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

BAB-Tec: No
Binary inputs integrated: No
Bistable relays: Yes
Blinds: No
Bluetooth: No
Brand: MDT
Capacitive load in µF: 140
Casambi: No
Class: switching actuators
Current measurement: No
DALI: No
Dimming: No
Division units: 8 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
Inputs for potential-free contacts: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: AKS-1210.03
Manufacturer type: AKS-1210.03
Manufacturer's Description: KNX Switch Actuator 12-channel, 8 SU MDRC, 10 A, 230 V AC, C-load, standard, 140 μF
Matter: No
max. switching current in A: 10
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Series installation
Number of outputs: 12
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
Size of connection terminal in mm2: 4
suitable for C load: Yes
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No
