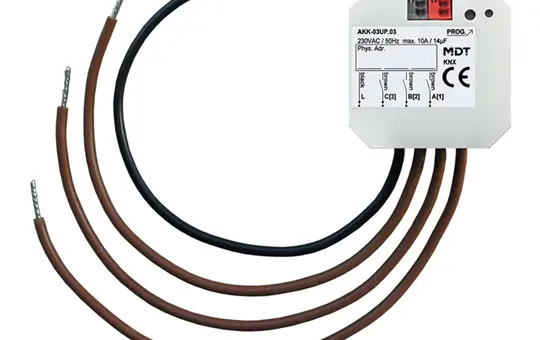

MDT AKK-03UP.03 KNX Fan Coil Actuator Compact Flush-Mounted | 3-fold

Manufacturer: MDT

Article no.: 20002659

EAN: 4251916130213

Manufacturer item number: AKK-03UP.03

Manufacturer type: AKK-03UP.03

Weight: 0,068 kg

In stock

Delivery: 2-3 business days

pcs

KNX switching actuator 3-fold, flush-mounted, 10 A, 230 V AC, compact, 14 µF, 2 EVG, fan coil.

For installation in the flush-mounted box, version with monostable relays
Current max. 10 A for resistive load, 10 A at 14 µF / 2 EVG

Operating mode fan coil:
Control of 3-stage fans/fan coil convectors. Outputs interlocked against each other (changeover circuit). Direct operation via three 1-bit objects or a single 1-bit object (+/-). Automatic operation via 1-byte setpoint (0-100%). Suitable for 2-pipe/4-pipe systems. Output objects for controlling heating/cooling valves. Day/night function to limit the ventilation level at night. Emergency operation in case of setpoint failure.

Operating mode switching actuator:
Normally closed and normally open operation. Time functions (switch-on/switch-off delay). Staircase lighting function with adjustable pre-warning time. Feedback function (active/passive) for all channels. Logical links, 8 scenes per channel. Central functions and lock objects for forced control.

BAB-Tec: No
Binary inputs integrated: No
Blinds: No
Bluetooth: No
Brand: MDT
Capacitive load in µF: 17
Casambi: No
Class: switching actuators
Current measurement: No
DALI: No
Dimming: No
ENOcean: No
Fan coil: Yes
free@home: No
Gira One: No
Hager KNXeasy: No
Inputs for potential-free contacts: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
Local/manual operation: No
Manufacturer item number: AKK-03UP.03
Manufacturer type: AKK-03UP.03
Manufacturer's Description: KNX Switch Actuator 3-channel, flush mounted, 10 A, 14 µF, 2ECG, 230VAV, Fan coil
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: flush-mounted
Number of outputs: 3
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
suitable for C load: No
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No
