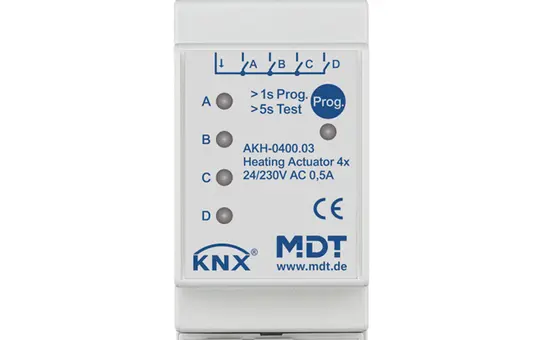

MDT AKH-0400.03 KNX heating actuator | 4-fold

Manufacturer: MDT

Article no.: 20003876

EAN: 4251916130114

Manufacturer item number: AKH-0400.03

Manufacturer type: AKH-0400.03

Weight: 0,076 kg

In stock

Delivery: 2-3 business days

123,69 €

incl. VAT + shipping

pcs

KNX heating actuator, 4-way, 2 modules, REG, 24-230 V AC. Heating actuator for controlling electrothermal valve drives, with LED display per channel. New generation with expanded functionality. Each channel can control up to 4 actuators (230 V AC). Outputs can be freely assigned to the controller channel. Control with 1-bit (switching/PWM) / 1-byte (continuous) control values or direct control with temperature value via KNX bus. Integrated PI temperature controller (heating and cooling). Comfort, night, and frost protection mode. Summer/winter mode. Setpoint adjustment with 1-bit +/-, 1-byte, or 2-byte absolute objects. Independent setpoint specification for comfort / standby / night. Setpoints can be saved in the event of a bus voltage failure. Emergency operation in the event of a failure of the cyclic control values. Overload protection with a fault signaling object (230 V AC). Power failure detection with a fault signaling object (230 V). Objects for heating requests and anti-sti

Brand: MDT
Class: Heating actuators
Different bus system: -
Division units: 2
Heating: Yes
KNX: Yes
KNX-TP: Yes
Manufacturer item number: AKH-0400.03
Manufacturer type: AKH-0400.03
max. inrush current per channel in A: 4,000.00
max. rated current in continuous operation per channel in mA: 500.00
Mounting type: Series installation
Number of outputs: 4
old Voltus number: 1699835
Rated voltage outputs: 24V AC | 230V AC
Size of connection terminal in mm2: 4.00
Type of transmission: Cable
