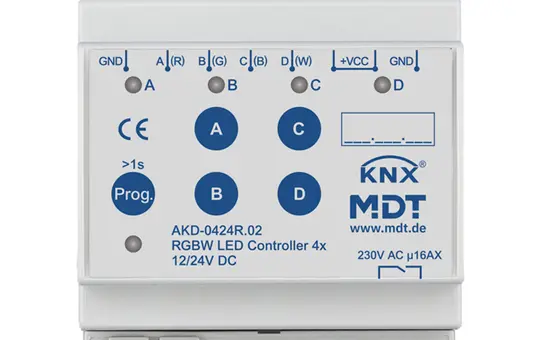

MDT AKD-0424R.02 KNX LED dimming actuator REG | 4/8 A

Manufacturer: MDT

Article no.: 20002666

EAN: 4251916130077

Manufacturer item number: AKD-0424R.02

Manufacturer type: AKD-0424R.02

Weight: 0,148 kg

In stock

Delivery: 2-3 business days

181,37 €

incl. VAT + shipping

pcs

KNX LED controller 4-channel 4/8 A, RGBW, 4TE REG. For 12/24 V CV LED, 4 individual channels or RGBW, TW. Extensive application. Absolute and relative dimming for HSV color space and RGB. Tunable White color temperature control. Selectable dimming curve and PWM F

Active power measurement: Yes
Brand: MDT
Color control: -
Connection type CC: -
DALI Device Type: -
Day/night function: Yes
Different bus system: -
Different phases can be connected: Yes
Dimming: Yes
Dimming method: PWM constant voltage CV
Division units: 4
KNX: Yes
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: AKD-0424R.02
Manufacturer type: AKD-0424R.02
Mounting type: Row installation
Number of outputs: 4
old Voltus number: 1659069
Output current in mA: 4000
Output power in W: 96.00
Parallel operation of channels possible: Yes
Rated voltage outputs: 12 - 24 V DC
Size of connection terminal in mm2: 2.50

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Bedien- & Installationsanleitung

Produktdatenblatt

Manufacturer information

MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Active power measurement: Yes
Brand: MDT
Color control: -
Connection type CC: -
DALI Device Type: -
Day/night function: Yes
Different bus system: -
Different phases can be connected: Yes
Dimming: Yes
Dimming method: PWM constant voltage CV
Division units: 4
KNX: Yes
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: AKD-0424R.02
Manufacturer type: AKD-0424R.02
Mounting type: Row installation
Number of outputs: 4
old Voltus number: 1659069
Output current in mA: 4000
Output power in W: 96.00
Parallel operation of channels possible: Yes
Rated voltage outputs: 12 - 24 V DC
Size of connection terminal in mm2: 2.50
