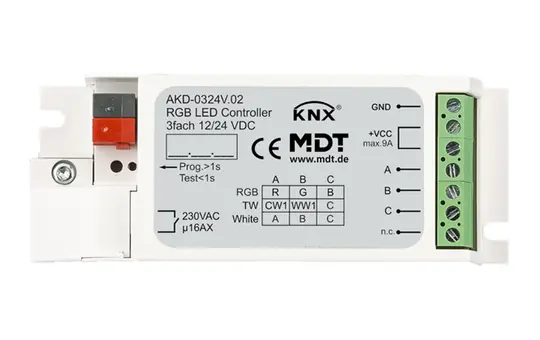

MDT AKD-0324V.02 KNX LED dimming actuator DE | 3-fold

Manufacturer: MDT

Article no.: 20002669

EAN: 4251916130046

Manufacturer item number: AKD-0324V.02

Manufacturer type: AKD-0324V.02

Weight: 0,083 kg

In stock

Delivery: 2-3 business days

158,52 €

incl. VAT + shipping

pcs

KNX LED controller 3-channel 3/6 A, RGB. For 12/24 V CV LED, 3 individual channels or RGB, TW. Extensive application. Absolute and relative dimming for HSV color space and RGB. Tunable White color temperature control. Selectable dimming curve and PWM frequency up to

Active power measurement: Yes
Brand: MDT
Color control: -
Connection type CC: -
DALI Device Type: -
Day/night function: Yes
Different bus system: -
Different phases can be connected: Yes
Dimming: Yes
Dimming method: PWM constant voltage CV
Division units: -
KNX: Yes
KNX-TP: Yes
Manufacturer item number: AKD-0324V.02
Manufacturer type: AKD-0324V.02
Mounting type: Ceiling insert
Number of outputs: 3
old Voltus number: 1659074
Output current in mA: 3000
Output power in W: 72.00
Parallel operation of channels possible: Yes
Rated voltage outputs: 12 - 24 V DC
Size of connection terminal in mm2: 2.50
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Bedien- & Installationsanleitung

Manufacturer information

MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Active power measurement: Yes
Brand: MDT
Color control: -
Connection type CC: -
DALI Device Type: -
Day/night function: Yes
Different bus system: -
Different phases can be connected: Yes
Dimming: Yes
Dimming method: PWM constant voltage CV
Division units: -
KNX: Yes
KNX-TP: Yes
Manufacturer item number: AKD-0324V.02
Manufacturer type: AKD-0324V.02
Mounting type: Ceiling insert
Number of outputs: 3
old Voltus number: 1659074
Output current in mA: 3000
Output power in W: 72.00
Parallel operation of channels possible: Yes
Rated voltage outputs: 12 - 24 V DC
Size of connection terminal in mm2: 2.50
Type of transmission: Cable

Documents
