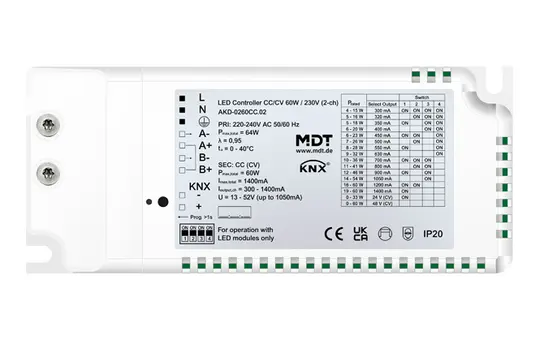

MDT AKD-0260CC.02 KNX LED Controller CC/CV with Power Supply Flush-Mounted | 2-fold

Manufacturer: MDT

Article no.: 20004300

EAN: 4251916130770

Manufacturer item number: AKD-0260CC.02

Manufacturer type: AKD-0260CC.02

Weight: 0,181 kg

In stock

Delivery: 2-3 business days

pcs

KNX LED Controller CC/CV 60 W / 230 V 2-channel.

Version with integrated power supply in a compact design. Constant current LED controller with a max. output current of 1,400 mA. Optimised hybrid dimming for better light quality (low flicker). Extensive application, absolute and relative dimming. Dimming range from 0.2% to 100%. Perfect dimming behaviour across the entire dimming range. Maximum output power 60 W across both channels. Maximum output current 1,400 mA. Constant current selectable via DIP switch. Tunable White colour temperature control. Selectable dimming curve, individual sequences. Operating modes: 2x white, Tunable White. Automatic colour temperature control Dim2Warm. Dynamic daylight control HCL. Automatic time-dependent dimming. Day / night function. Overcurrent and temperature monitoring. Integrated power supply in a compact design. Secondary connection cable up to 6 m. Dimensions (W x H x D): 129 mm x 54 mm x 25 mm. 3 years product warranty.

Active power measurement: No
BAB-Tec: No
Blinds: No
Bluetooth: No
Brand: MDT
Casambi: No
Class: Dimming actuators
DALI: No
Day/night function: Yes
Different phases can be connected: No
Dimming: No
Dimming method: PWM constant current CC
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
Local/manual operation: No
Manufacturer item number: AKD-0260CC.02
Manufacturer type: AKD-0260CC.02
Manufacturer's Description: KNX LED Controller CC/CV 60 W / 230 V 2-Channel
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Ceiling drop
Number of outputs: 2
Output current in mA: 1400
Output power in W: 60
Parallel operation of channels possible: No
Rated voltage outputs: 24V DC
Shelly: No
Siemens LOGO!: No
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Manual

Data Sheet

Manufacturer information

MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Active power measurement: No
BAB-Tec: No
Blinds: No
Bluetooth: No
Brand: MDT
Casambi: No
Class: Dimming actuators
DALI: No
Day/night function: Yes
Different phases can be connected: No
Dimming: No
Dimming method: PWM constant current CC
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
Local/manual operation: No
Manufacturer item number: AKD-0260CC.02
Manufacturer type: AKD-0260CC.02
Manufacturer's Description: KNX LED Controller CC/CV 60 W / 230 V 2-Channel
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Ceiling drop
Number of outputs: 2
Output current in mA: 1400
Output power in W: 60
Parallel operation of channels possible: No
Rated voltage outputs: 24V DC
Shelly: No
Siemens LOGO!: No
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No
