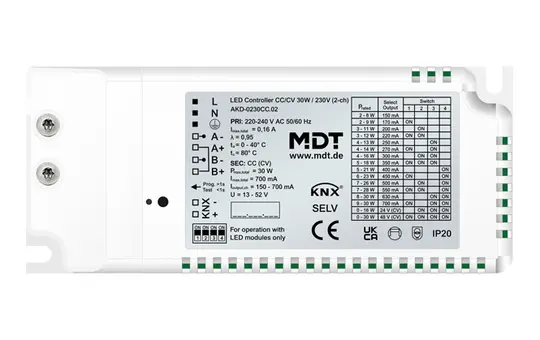

MDT AKD-0230CC.02 KNX LED controller CC/CV with flush-mounte | 2-fold, 30W

Manufacturer: MDT

Article no.: 20042532

EAN: 4251916130879

Manufacturer item number: AKD-0230CC.02

Manufacturer type: AKD-0230CC.02

Weight: 0,16 kg

Available on request

153,35 €

incl. VAT + shipping

pcs

KNX LED controller CC/CV 30 W / 230 V, 2-channel. It features an integrated power supply in a compact design. Constant current LED controller with a maximum output current of 700 mA. Optimized hybrid dimming for improved light quality (low flicker). Extensive application, absolute and relative dimming. Dimming range from 0.2% to 100%. Perfect dimming behavior across the entire dimming range. Maximum output power of 30 W across both channels. Max. output current: 700 mA. Constant current selectable via DIP switch. Tunable White color temperature control. Selectable dimming curve, custom sequences. Operating modes: 2x White, Tunable White. Automatic color temperature control Dim2Warm. Dynamic daylight control HCL. Automatic time-dependent dimming. Day/night function. Overcurrent and temperature monitoring. Integrated power supply in a compact design. Secondary connection cable up to 6 m. Dimensions (W x H x D): 129 mm x 54 mm x 25 mm. 3-year product warranty.

Brand: MDT
Color control: -
Connection type CC: -
DALI Device Type: -
Day/night function: Yes
Different bus system: -
Division units: -
KNX: Yes
KNX-TP: Yes
Manufacturer item number: AKD-0230CC.02
Manufacturer type: AKD-0230CC.02
Mounting type: Ceiling insert
Number of outputs: 2
old Voltus number: 1707448
Output current in mA: 1400
Output power in W: 60.00
Rated voltage outputs: 230V AC
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Bedien- & Installationsanleitung

Produktdatenblatt

Manufacturer information

MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.
