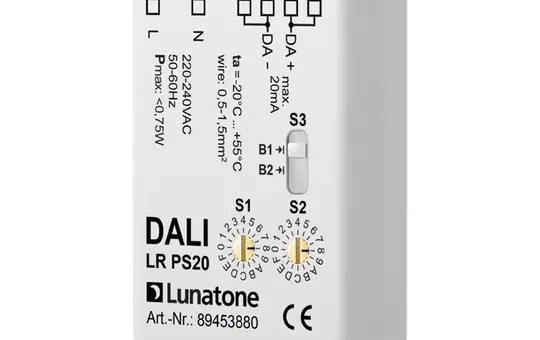

LUNATONE 89453880 DALI power reduction standard

LUNATONE 89453880 DALI power reduction | standard

Manufacturer: LUNATONE
Article no.: 20037191
EAN: 9010342012587
Manufacturer item number: 89453880
Manufacturer type: DALI LR PS20
Weight: 0,032 kg
Available on request
89,50 €
incl. VAT + shipping
pcs
Compact control module for automatic power reduction / night-time brightness reduction. Integrated bus supply (20 mA) for up to 7 standard DALI loads, expandable for up to 64 loads with a DALI Expander. Supports 2 operating modes: B1: Power reduction via mains or control phase B2: Power reduction based on virtual midnight calculation. Settings via rotary and slide switches. Suitable for installation in electrical installation boxes and integration into protection class II devices. Technical specifications: Ambient temperature: -20 to +55 °C Protection class: IP20 Max. connecting wire cross-section: 1.5mm² Installation: Box installation Electrical data: Supply voltage: 230 V AC Max. input current: 3 mA Galvanic isolation: between DALI output (20 mA) and 230 V input Output: DALI, Imax = 20 mA Housing: Length: 59 mm, Width: 33 mm, Height: 15 mm, Color: Gray.
Brand
LUNATONE
Class
Logic modules
DALI
Yes
Different bus system
-
Division units
-
Installation location
Wall
Manufacturer item number
89453880
Manufacturer type
DALI LR PS20
old Voltus number
1698920
Time function
Yes
Type of transmission
Cable
Manufacturer information
LUNATONE
Lunatone Industrielle Elektronik GmbH
Paukerwerkstraße 5
1210 Wien
AT

office@lunatone.com
www.lunatone.com/
