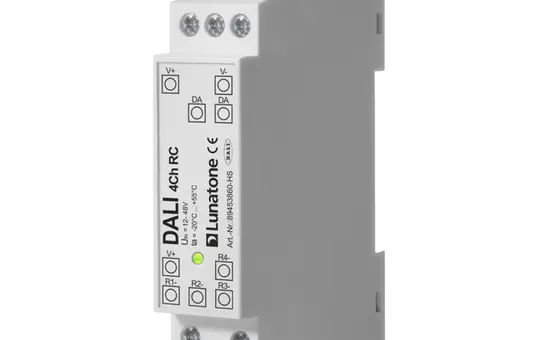

LUNATONE 89453860-HS DALI Relay Controller REG | 4-fold

Manufacturer: LUNATONE

Article no.: 20008656

EAN: 9010342011269

Manufacturer item number: 89453860-HS

Manufacturer type: DALI-2 4Ch RC-HS

Weight: 0,068 kg

In stock

Delivery: 2-3 business days

pcs

DALI 4Ch RC Control Gear Overview

- 4-channel relay controller

- For connecting switched loads to a DALI system

- Suitable for relays/contactors with coil voltages from 12V to 48V DC

- Each channel has its own DALI address (Device Type 7)

- Configuration via DALI Cockpit software tool and DALI USB interface

- 2 housing variants

- Maximum connection current 8A

- Maximum output current per channel 2A

Specification, Characteristics

Electrical Data

Supply: 12VDC–48VDC (relay control voltage)

Maximum connection current: 8A

Max. current per channel: 2A

Control input: DALI

Number of DALI addresses: 4

Typical DALI current consumption: 2mA

State after power return: programmable

Mechanical Data

Dimensions: 98mm x 17mm x 56mm

Housing type: DIN rail

Wire cross-section for connection: 2.5mm²

Ambient temperature range: -20 °C to +55 °C

Protection rating: IP20

For further information, please refer to the datasheet.

BAB-Tec: No
Binary inputs integrated: No
Bistable relays: No
Blinds: No
Bluetooth: No
Brand: LUNATONE
Casambi: No
Class: switching actuators
DALI: Yes
DALI Device Type: DT7
DALI-Standard: DALI 1
Dimming: No
Division units: 1 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
Inputs for potential-free contacts: No
JUNG HOME: No
KNX: No
KNX-RF: No
KNX-Secure: No
KNX-TP: No
Local/manual operation: No
Manufacturer item number: 89453860-HS
Manufacturer type: DALI-2 4Ch RC-HS
Matter: No
max. switching current in A: 2
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Series installation
Number of outputs: 4
Rated voltage outputs: 12 - 48V DC
Shelly: No
Siemens LOGO!: No
suitable for C load: No
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No
