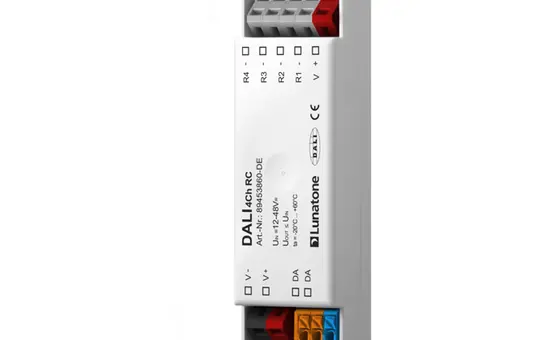

LUNATONE 89453860-DE DALI relay controller DE 4-fold

LUNATONE 89453860-DE DALI relay controller DE | 4-fold

Manufacturer: LUNATONE
Article no.: 20008655
EAN: 9010342011252
Manufacturer item number: 89453860-DE
Manufacturer type: DALI-2 4Ch RC-DE
Weight: 0,06 kg
In stock
Delivery: 2-3 business days
70,46 €
incl. VAT + shipping
pcs
DALI 4Ch RC Control Gear Overview - 4 channel relay controller - For connecting switched loads to a DALI system - Suitable for relays/contactors with coil voltages from 12V to 48V DC - Each channel has its own DALI address (Device Type 7) - Configuration via DALI Cockpit software tool and DALI USB interface - 2 housing variants - Maximum connected current 8A - Maximum output current per channel 2A Specification, characteristics Electrical data Supply: 12VDC-48VDC (= relay control voltage) Maximum connected current: 8A Max. current per channel: 2A Control input: DALI Number of DALI addresses: 4 Typical DALI current consumption: 2mA State after mains return: programmable Mechanical data Dimensions: 120mm x 30mm x 21mm Housing type: Ceiling installation Cross section of connecting wire: 2.5mm² Ambient temperature range: -20 degrees Celsius...+60 degrees Celsius Protection class: IP20 For further information please refer to the data sheet.
Brand
LUNATONE
Class
switching actuators
DALI
Yes
DALI Device Type
DT7
DALI-Standard
DALI 1
Different bus system
-
Division units
-
Manufacturer item number
89453860-DE
Manufacturer type
DALI-2 4Ch RC-DE
max. switching current in A
2.00
Mounting type
Ceiling insert
Number of outputs
4
old Voltus number
1664083
Rated voltage outputs
12 - 48V DC
Type of transmission
Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt
Deeplink
Manufacturer information
LUNATONE
Lunatone Industrielle Elektronik GmbH
Paukerwerkstraße 5
1210 Wien
AT

office@lunatone.com
www.lunatone.com/
