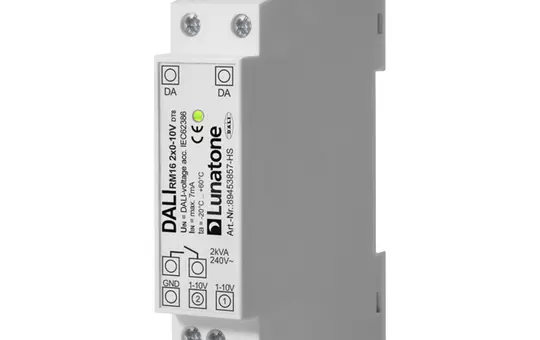

LUNATONE 89453857-HS DALI-1-10V interface DT8 REG | 2-fold, 16 A

Manufacturer: LUNATONE

Article no.: 20009487

EAN: 9010342012464

Manufacturer item number: 89453857-HS

Manufacturer type: DALI RM16 2×0-10V-HS

Weight: 0,063 kg

In stock

Delivery: 2-3 business days

118,07 €

incl. VAT + shipping

pcs

The product controls electronic ballasts with 1-10V control inputs for brightness and color temperature. It includes switching relays for switching the ECG power supply on/off and offers automatic calibration for the output signals. The module can assign DALI DT8 addresses and offers various output modes for brightness/Tc or separate channels for CW and WW. It converts DALI commands into analog 1-10V output signals, with 1mA per channel. The relay has a switching voltage of 250V/400V, a rated load of 2000VA, and a maximum switching current peak of 160A. It is galvanically isolated from the DALI input and 1-10V outputs. Further specifications can be found in the manufacturer's data sheet.

Brand: LUNATONE
Class: Analog input
Color: white
Configuration: Analog
DALI: Yes
Different bus system: -
Division units: 1
Installation location: distribution cabinet
Manufacturer item number: 89453857-HS
Manufacturer type: DALI RM16 2×0-10V-HS
Mounting type: Series installation
Number of inputs: 2
old Voltus number: 1691577
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Deeplink

Produktdatenblatt

Manufacturer information

LUNATONE
Lunatone Industrielle Elektronik GmbH
Paukerwerkstraße 5
1210 Wien
AT

office@lunatone.com
www.lunatone.com/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: LUNATONE
Class: Analog input
Color: white
Configuration: Analog
DALI: Yes
Different bus system: -
Division units: 1
Installation location: distribution cabinet
Manufacturer item number: 89453857-HS
Manufacturer type: DALI RM16 2×0-10V-HS
Mounting type: Series installation
Number of inputs: 2
old Voltus number: 1691577
Type of transmission: Cable
