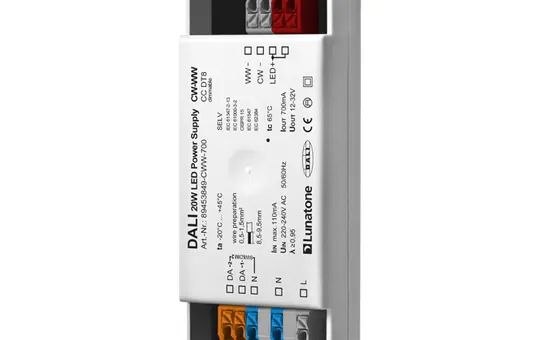

LUNATONE 89453849-CWW-700 DALI LED Power Supply CC DT8 TW, 700mA

LUNATONE 89453849-CWW-700 DALI LED Power Supply CC DT8 | TW, 700mA

Manufacturer: LUNATONE
Article no.: 20008130
EAN: 9010342011429
Manufacturer item number: 89453849-CWW-700
Manufacturer type: DALI LED Power Supply CC-CWW-700
Weight: 0,1 kg
Available on request
Electrical appliance take-back
pcs
The DALI CW-WW LED Power Supply enables independent control of brightness and colour temperature in LED lighting. There are versions for constant voltage and constant current LED modules. Operating modes such as DT8, Balance&Dim, Dim2Warm, and SwitchDim2 offer flexibility in control. With a dimming range from 0.1% to 100% and a switchable PWM frequency, the lighting can be precisely adjusted. Configuration is done via the DALI Cockpit software tool and a DALI USB interface. For further details, please refer to the datasheet.
Active power factor correction (PFC)
Yes
Brand
LUNATONE
Casambi
No
Class
lighting power supplies
DALI
Yes
DMX
No
KNX
No
Manufacturer item number
89453849-CWW-700
Manufacturer type
DALI LED Power Supply CC-CWW-700
Mounting type
Ceiling drop
Output current in mA
700
Output type
Constant current (CC)
Output voltage
12V - 32V
Parallel connection possible
No
Power in W
25
Protection class (IP)
IP20
with dimming function
Yes
