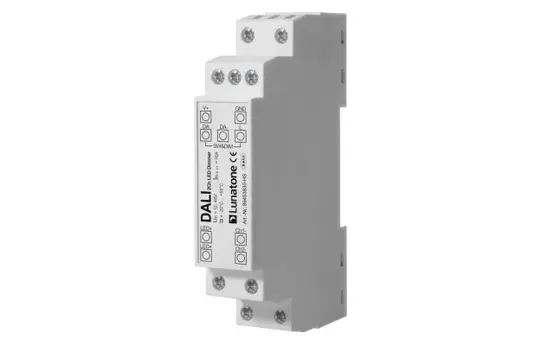

LUNATONE 89453830-HS DALI LED dimming actuator CV DT6 REG | 2-fold, 16 A

Manufacturer: LUNATONE

Article no.: 20008062

EAN: 9010342012983

Manufacturer item number: 89453830-HS

Manufacturer type: DALI 2Ch LED Dimmer CV-16A-HS

Weight: 0,065 kg

In stock

Delivery: 2-3 business days

85,69 €

incl. VAT + shipping

pcs

DALI 2Ch LED Dimmer CV Control Gear Overview 2-channel CV LED dimmer Suitable for controlling constant voltage LED modules Control via DALI Each channel has its own DALI address. For controlling both channels via a common DALI address (DT8), devices with appropriate software are available: Product group DALI CW-WW PWM Dimming range of outputs 0.1%-100% (default setting 1%-100%) Configuration via PC software DALICockpit and DALI USB interface Supply voltage 12V to 28V DC (socket) or 12V to 48V DC 4 housing variants Depending on the type, max. connected currents of 4A, 8A, 10A or 16A The connected current can be distributed as required among the channels. For further technical specifications, see data sheet

Brand: LUNATONE
Color control: -
Connection type CC: -
DALI: Yes
DALI Device Type: DT6
Different bus system: -
Dimming: Yes
Dimming method: PWM constant voltage CV
Division units: 1
Manufacturer item number: 89453830-HS
Manufacturer type: DALI 2Ch LED Dimmer CV-16A-HS
Mounting type: Series installation
Number of outputs: 2
old Voltus number: 1674384
Output current in mA: 16000
Rated voltage outputs: 12 - 48V DC
Size of connection terminal in mm2: 2.50
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Manufacturer information

LUNATONE
Lunatone Industrielle Elektronik GmbH
Paukerwerkstraße 5
1210 Wien
AT

office@lunatone.com
www.lunatone.com/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: LUNATONE
Color control: -
Connection type CC: -
DALI: Yes
DALI Device Type: DT6
Different bus system: -
Dimming: Yes
Dimming method: PWM constant voltage CV
Division units: 1
Manufacturer item number: 89453830-HS
Manufacturer type: DALI 2Ch LED Dimmer CV-16A-HS
Mounting type: Series installation
Number of outputs: 2
old Voltus number: 1674384
Output current in mA: 16000
Rated voltage outputs: 12 - 48V DC
Size of connection terminal in mm2: 2.50
Type of transmission: Cable
