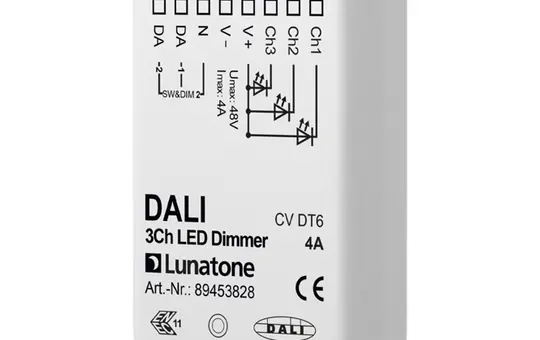

LUNATONE 89453828 DALI LED dimming actuator CV DT6 UP | 3-fold, 4 A

Manufacturer: LUNATONE

Article no.: 20007605

EAN: 9010342011757

Manufacturer item number: 89453828

Manufacturer type: DALI 3Ch CV4A

Weight: 0,03 kg

In stock

Delivery: 2-3 business days

67,60 €

incl. VAT + shipping

pcs

DALI LED dimmer (CV) with 3 separately controllable channels, for installation in luminaires or boxes. Each channel has its own DALI address. Alternative operating modes to DT6 control: Colour&Dim (control of RGB lights) and SwitchDim2 (control via 2 push-button inputs without DALI). Input voltage: 12V to 48V DC, max. connection current 8A, 3 PWM outputs (16 bit). Product features: -3-channel LED dimmer -for controlling constant voltage LED modules -dimming range from 0.1-100% -the max. connected current can be distributed as desired across the channels -switchable PWM frequency (122Hz/244Hz/488Hz/976Hz) -configuration via PC software DALI Cockpit and DALI USB interface Technical specifications: Input voltage: 12-48VDC Max. connected current: 8A Control input: DALI DT6/SwitchDim2 (mains voltage) Number of DALI addresses: DT6=3/Colour&Dim=2 Max. cable cross-section: 1.5mm² Variant: box/luminaire installation Ambient temperature: -20 to +60 degrees Celsius Protection class: IP20 Dimensio

Brand: LUNATONE
Color control: -
Connection type CC: -
DALI: Yes
DALI Device Type: DT6
Different bus system: -
Dimming: Yes
Dimming method: PWM constant voltage CV
Division units: -
Manufacturer item number: 89453828
Manufacturer type: DALI 3Ch CV4A
Mounting type: flush-mounted
Number of outputs: 3
old Voltus number: 1623454
Output current in mA: 4000
Rated voltage outputs: 12 - 48V DC
Size of connection terminal in mm2: 2.50
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Datenblatt

Manufacturer information

LUNATONE
Lunatone Industrielle Elektronik GmbH
Paukerwerkstraße 5
1210 Wien
AT

office@lunatone.com
www.lunatone.com/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: LUNATONE
Color control: -
Connection type CC: -
DALI: Yes
DALI Device Type: DT6
Different bus system: -
Dimming: Yes
Dimming method: PWM constant voltage CV
Division units: -
Manufacturer item number: 89453828
Manufacturer type: DALI 3Ch CV4A
Mounting type: flush-mounted
Number of outputs: 3
old Voltus number: 1623454
Output current in mA: 4000
Rated voltage outputs: 12 - 48V DC
Size of connection terminal in mm2: 2.50
Type of transmission: Cable
