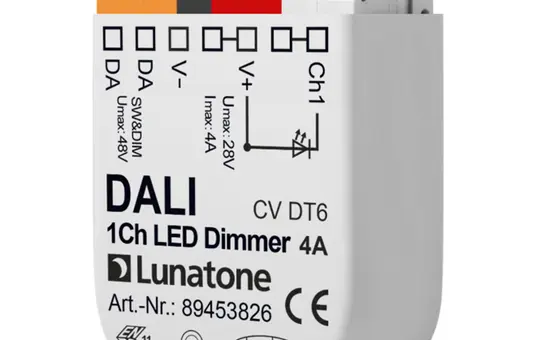

LUNATONE 89453826 DALI LED dimming actuator CV DT6 UP | 1-fold, 4 A

Manufacturer: LUNATONE

Article no.: 20007600

EAN: 9010342011528

Manufacturer item number: 89453826

Manufacturer type: DALI 1Ch CV-4

Weight: 0,01 kg

In stock

Delivery: 2-3 business days

56,18 €

incl. VAT + shipping

pcs

Single-channel DALI LED dimmer (CV) for installation in luminaires or boxes. The output is controllable via DALI or SW&DIM. Input voltage from 12V to 28V DC, maximum connection current 4A, PWM output (16-bit). Product features: - 1-channel LED dimmer - for controlling constant voltage LED modules - dimming range from 0.1-100% - switchable PWM frequency (122Hz/244Hz/488Hz/976Hz) - configuration via PC software DALI Cockpit and DALI USB interface Technical specifications: Input voltage: 12-28VDC Max. connection current: 4A Control input: DALI DT6 / SwitchDim (48V) Number of DALI addresses: 1 Max. cable cross-section: 1.5 mm² Variant: box / luminaire installation Ambient temperature: -20 to +60 degrees Celsius Protection class: IP20 Dimensions (LxWxH): 40 x 28 x 14 mm

Brand: LUNATONE
Color control: -
Connection type CC: -
DALI: Yes
DALI Device Type: DT6
Different bus system: -
Dimming: Yes
Dimming method: PWM constant voltage CV
Division units: -
Manufacturer item number: 89453826
Manufacturer type: DALI 1Ch CV-4
Mounting type: flush-mounted
Number of outputs: 1
old Voltus number: 1605063
Output current in mA: 4000
Rated voltage outputs: 12 - 48V DC
Size of connection terminal in mm2: 2.50
Switch: Yes
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Deeplink

Produktdatenblatt

Manufacturer information

LUNATONE
Lunatone Industrielle Elektronik GmbH
Paukerwerkstraße 5
1210 Wien
AT

office@lunatone.com
www.lunatone.com/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: LUNATONE
Color control: -
Connection type CC: -
DALI: Yes
DALI Device Type: DT6
Different bus system: -
Dimming: Yes
Dimming method: PWM constant voltage CV
Division units: -
Manufacturer item number: 89453826
Manufacturer type: DALI 1Ch CV-4
Mounting type: flush-mounted
Number of outputs: 1
old Voltus number: 1605063
Output current in mA: 4000
Rated voltage outputs: 12 - 48V DC
Size of connection terminal in mm2: 2.50
Switch: Yes
Type of transmission: Cable
