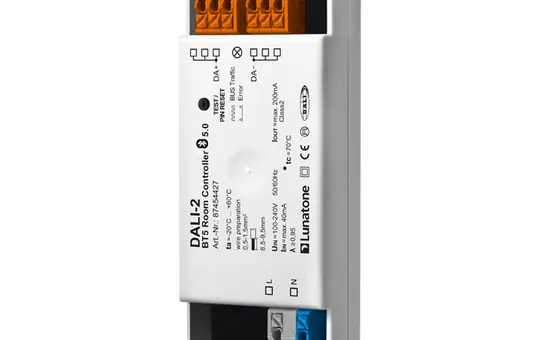

LUNATONE 87454427 DALI-2 Bluetooth Room Controller standard

LUNATONE 87454427 DALI-2 Bluetooth Room Controller | standard

Manufacturer: LUNATONE
Article no.: 20037190
EAN: 9010342013539
Manufacturer item number: 87454427
Manufacturer type: DALI-2 BT5 Room Controller
Weight: 0,08 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
Technical data:

Type of input: Supply, mains voltage
Terminal designation: L, N
Input voltage range: 100Vac – 240Vac
Maximum input current: 40mA (@120Vac), 20mA (@240Vac)
Network frequency: 50Hz / 60Hz
Power consumption: max. 5.3W
Switch-on ramp-up time: 250ms

Type of output: DALI bus supply
Terminal designation: DA+, DA–
Output voltage range: 12Vdc – 20.5Vdc
Guaranteed DALI output current: 180mA
Maximum DALI output current: 250mA
No-load proof: Yes
Short-circuit proof: Yes
Impulse voltage category: II
Pollution degree: 2
Rated insulation voltage: 250V
Insulation output (DA+, DA–) / supply (L, N): Reinforced insulation
Insulation test voltage: 3000Vac
Transport and storage temperature: -20 to +75 degrees Celsius
Operating temperature: -10 to +55 degrees Celsius
Relative humidity, non-condensing: 15% – 90%
BAB-Tec
No
Bluetooth
No
Brand
LUNATONE
Casambi
No
Class
Touch panels
DALI
Yes
ENOcean
No
free@home
No
Gira One
No
Hager KNXeasy
No
JUNG HOME
No
KNX
No
KNX-RF
No
KNX-Secure
No
KNX-TP
No
Manufacturer item number
87454427
Manufacturer type
DALI-2 BT5 Room Controller
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
Ceiling drop
Shelly
No
Siemens LOGO!
No
Theben LUXORliving
No
Thread
No
Wiser Home
No
with Netatmo
No
Zigbee
No
Manufacturer information
LUNATONE
Lunatone Industrielle Elektronik GmbH
Paukerwerkstraße 5
1210 Wien
AT

office@lunatone.com
www.lunatone.com/
