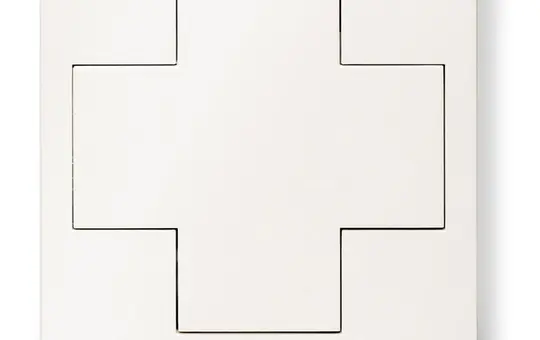

LUNATONE 86459793-W-2-app DALI-2 Switch Cross App controller activated | pure white

LUNATONE 86459793-W-2-app DALI-2 Switch Cross | App controller activated | pure white

Manufacturer: LUNATONE
Article no.: 20010178
EAN: 9010342012945
Manufacturer item number: 86459793-W-2-app
Manufacturer type: DALI-2 Switch Cross-W-2-app
Weight: 0,068 kg
Available on request
Electrical appliance take-back
pcs
Direct DALI control commands, which are executed immediately by the DALI drivers.

- Push-button module with four individually configurable buttons.
- Assignment of DALI commands via DALI Cockpit software, NFC-enabled smartphones, Lunatone NFC configuration app.
- Standard functions such as dimming, switching, scene recall, etc.
- Macros for controlling colour temperature, dynamic scenes, sequences, custom command lists
- Delivery possible with various symbols

Technical data:
Ambient temperature: 0 to +50 degrees Celsius
Protection rating: IP20
Connection wire cross-section: max. 2.5 mm²
Mounting: wall mounting
Device type: operating device
Behaviour after power return: configurable
Multi-master capable: yes
Programmable functions: yes
Dimensions (length x width x height) in mm: 82 x 82 x 8.5

Electrical data:
Supply: from DALI bus
Control input: 4 integrated push-buttons
Typical current consumption: 1.5 mA
Output: DALI, DALI-2, multi-master
BAB-Tec
No
Bluetooth
No
Brand
LUNATONE
Casambi
No
Class
Touch sensors
CO2 sensor
No
Color temperature control
Yes
Colour
white
Customizable
No
DALI
Yes
DALI-2
Yes
ENOcean
No
fits in 55 switch range
No
free@home
No
Gira One
No
Hager KNXeasy
No
Humidity sensor
No
Infrared sensor
No
Installation location
Wall
Integrated actuator
No
Integrated binary input
No
Integrated room temperature controller
No
JUNG HOME
No
KNX
No
KNX-RF
No
KNX-TP
No
Label field
No
Manufacturer item number
86459793-W-2-app
Manufacturer type
DALI-2 Switch Cross-W-2-app
Manufacturer's colour
pure white
Material
Plastic
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
flush-mounted
Number of buttons
4
Operating mode
push button
Protection class (IP)
IP20
Proximity sensor
No
RGB lighting control
Yes
RGB status LED
No
Shelly
No
Siemens LOGO!
No
Status LED, control light
No
suitable for installation in switch ranges
No
Surface
matt
Temperature sensor
No
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with display
No
with Netatmo
No
Zigbee
No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manufacturer information
LUNATONE
Lunatone Industrielle Elektronik GmbH
Paukerwerkstraße 5
1210 Wien
AT

office@lunatone.com
www.lunatone.com/
