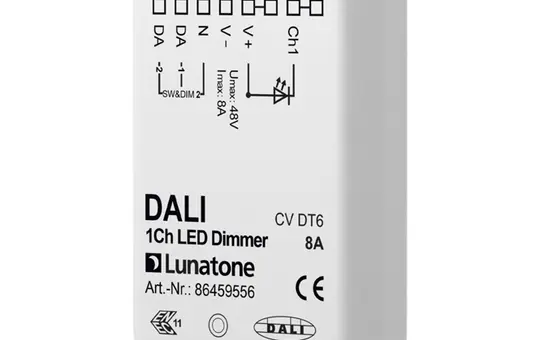

LUNATONE 86459556 DALI LED dimming actuator CV DT6 UP | 1-fold, 8 A

Manufacturer: LUNATONE

Article no.: 20007601

EAN: 9010342011535

Manufacturer item number: 86459556

Manufacturer type: DALI 1Ch CV-8

Weight: 0,015 kg

In stock

Delivery: 2-3 business days

70,46 €

incl. VAT + shipping

pcs

Single-channel DALI LED dimmer (CV) for installation in luminaires or boxes. Output is controllable via DALI or SwitchDim2. Input voltage from 12V to 48V DC, maximum connection current 8A, PWM output (16-bit). Product features: - 1-channel LED dimmer - for controlling constant voltage LED modules - dimming range from 0.1-100% - switchable PWM frequency (122Hz/244Hz/488Hz/976Hz) - configuration via PC software DALI Cockpit and DALI USB interface Technical specifications: Input voltage: 12-48VDC Max. connection current: 8A Control input: DALI DT6 / SwitchDim2 (mains voltage) Number of DALI addresses: 1 Max. cable cross-section: 1.5 mm² Variant: box / luminaire installation Ambient temperature: -20 to +60 degrees Celsius Protection class: IP20 Dimensions (LxWxH): 59 x 33 x 15 mm

Brand: LUNATONE
Color control: -
Connection type CC: -
DALI: Yes
DALI Device Type: DT6
Different bus system: -
Dimming: Yes
Dimming method: PWM constant voltage CV
Division units: -
Manufacturer item number: 86459556
Manufacturer type: DALI 1Ch CV-8
Mounting type: flush-mounted
Number of outputs: 1
old Voltus number: 1605044
Output current in mA: 8000
Rated voltage outputs: 12 - 48V DC
Size of connection terminal in mm2: 2.50
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Deeplink

Manufacturer information

LUNATONE
Lunatone Industrielle Elektronik GmbH
Paukerwerkstraße 5
1210 Wien
AT

office@lunatone.com
www.lunatone.com/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: LUNATONE
Color control: -
Connection type CC: -
DALI: Yes
DALI Device Type: DT6
Different bus system: -
Dimming: Yes
Dimming method: PWM constant voltage CV
Division units: -
Manufacturer item number: 86459556
Manufacturer type: DALI 1Ch CV-8
Mounting type: flush-mounted
Number of outputs: 1
old Voltus number: 1605044
Output current in mA: 8000
Rated voltage outputs: 12 - 48V DC
Size of connection terminal in mm2: 2.50
Type of transmission: Cable
