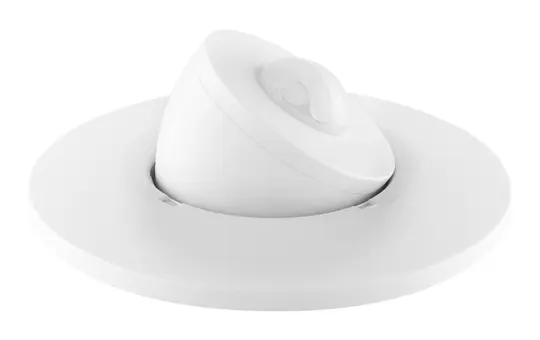

LUNATONE 86458621-W16 DALI combination sensor UP standard | traffic white | 12 m

LUNATONE 86458621-W16 DALI combination sensor UP | standard | traffic white | 12 m

Manufacturer: LUNATONE
Article no.: 20007581
EAN: 9010342010798
Manufacturer item number: 86458621-W16
Manufacturer type: DALI CS-12-W16
Weight: 0,067 kg
In stock
Delivery: 2-3 business days
66,80 €
incl. VAT + shipping
pcs
Sensor unit for DALI lighting control systems Passive infrared sensor Motion-dependent lighting control Constant light control (from firmware 4.13) Temperature sensor (also available with integrated infrared receiver on request) Can be used as an active lighting control unit or for integration into building management systems Easy configuration of the sensor via the DALI bus using the DALI Cockpit software Control of the DALI circuit via DALI commands (such as ON, OFF, RECALL MIN/MAX, GO TO SCENE X, ) to individual addresses, groups or even broadcast Simple group assignment (motion detector) via rotary switch on the rear Combination of several DALI CS in one DALI circuit possible Direct mounting on a flush-mounted box and on cavity walls, versions available for surface mounting (-AP) and for recessed ceiling installation (-ZD) Available colors: RAL9010 and RAL9016 (-W16) Supply directly via the DALI line, no additional connection necessary For further technical data, see data sheet
Brand
LUNATONE
Brightness sensor
Yes
Class
Presence detector
Color
white
DALI
Yes
Detection angle in °
360
Detection area
circular
Detection type/sensor type
Passive infrared
Different bus system
-
Installation height in m
8.00
Installation location
Ceiling
Integrated constant light control
Yes
Manufacturer item number
86458621-W16
Manufacturer type
DALI CS-12-W16
Manufacturer's color
verkehrsweiß
Mounting type
flush-mounted
Number of areas
1
old Voltus number
1664783
Reach laterally in m
6.00
suitable for ceiling mounting
Yes
Surface
matt
Type of transmission
Cable
