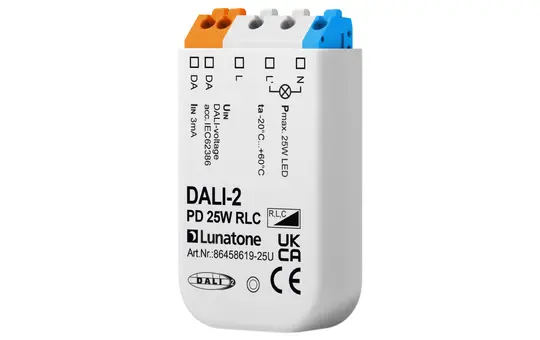

LUNATONE 86458619-25U DALI dimming actuator 25 W UP | Universal (RLC)

Manufacturer: LUNATONE

Article no.: 20007673

EAN: 9010342011313

Manufacturer item number: 86458619-25U

Manufacturer type: DALI-2 PD-25U

Weight: 0,019 kg

In stock

Delivery: 2-3 business days

82,84 €

incl. VAT + shipping

pcs

The LUNATONE 86458619-25U DALI Universal Phase Dimmer 3-25W enables the dimming of 230V lamps in a DALI circuit. It converts the DALI dimming level into a trailing edge or leading edge phase control voltage and offers an adjustable minimum dimming level via DALI. The module can also be used as a DT7-compliant switch. With dual connection terminals for easy DALI bus loop-through, it is easy to install. The housing is IP20 protected. Electrically, it operates with an input voltage from the DALI bus, with a power output of 3-25W. The slim, white housing is suitable for flush-mounting and measures 59 mm long, 33 mm wide, and 15 mm high, while weighing 19 g. It is dimmable and compatible with the DALI interface, and meets CE conformity.

Brand: LUNATONE
Color control: -
Connection type CC: -
DALI: Yes
DALI Device Type: DT4
Different bus system: -
Dimming: Yes
Dimming method: Phase lead/edge
Division units: -
Manufacturer item number: 86458619-25U
Manufacturer type: DALI-2 PD-25U
Mounting type: flush-mounted
Number of outputs: 1
old Voltus number: 1623936
Output power in W: 25.00
Rated voltage outputs: 230V AC
Size of connection terminal in mm2: 2.50
