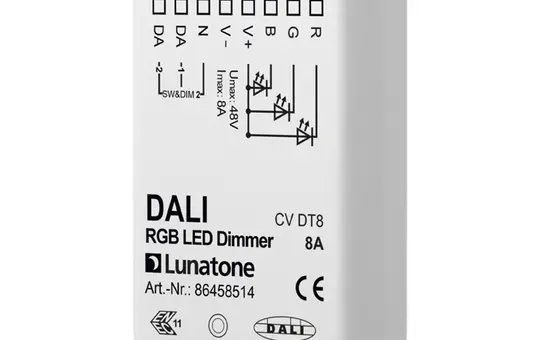

LUNATONE 86458514 DALI LED dimming actuator CV DT8 UP RGB, 8A

LUNATONE 86458514 DALI LED dimming actuator CV DT8 UP | RGB, 8A

Manufacturer: LUNATONE
Article no.: 20007609
EAN: 9010342012105
Manufacturer item number: 86458514
Manufacturer type: DALI RGB LED Dimmer CV DT8
Weight: 0,028 kg
In stock
Delivery: 2-3 business days
89,50 €
incl. VAT + shipping
pcs
DALI LED dimmer (CV) with 3 output channels for controlling RGB lights via a DALI address (DT8). As an alternative to the DT8 control, the device supports the operating modes: Colour&Dim and SwitchDim2 (control option via 2 button inputs without DALI). egg
Brand
LUNATONE
Color control
RGB
Connection type CC
-
DALI
Yes
DALI Device Type
DT8
Different bus system
-
Dimming
Yes
Dimming method
PWM constant voltage CV
Division units
-
Manufacturer item number
86458514
Manufacturer type
DALI RGB LED Dimmer CV DT8
Mounting type
flush-mounted
Number of outputs
3
old Voltus number
1605039
Output current in mA
8000
Rated voltage outputs
12 - 48V DC
Size of connection terminal in mm2
2.50
Type of transmission
Cable
