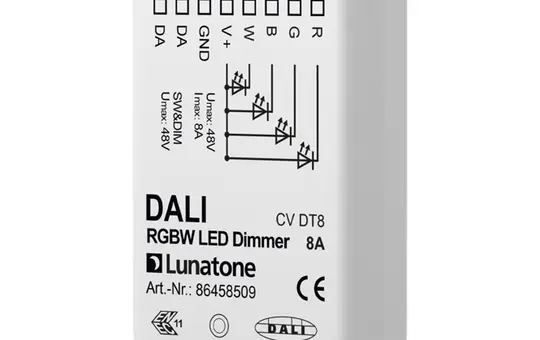

LUNATONE 86458509 DALI LED dimming actuator CV DT8 UP | RGBW, 8A

Manufacturer: LUNATONE

Article no.: 20007608

EAN: 9010342012211

Manufacturer item number: 86458509

Manufacturer type: DALI DT8 RGBW CV8A

Weight: 0,01 kg

In stock

Delivery: 2-3 business days

106,64 €

incl. VAT + shipping

pcs

The LUNATONE 86458509 DALI DT8 RGBW PWM LED Dimmer CV enables the control of constant-voltage LED modules with RGBW color control via DALI. DT8 and Color&Dim operating modes offer brightness and color control via DALI addresses or push-button inputs. Dimming range from 0.1% to 100%. Switchable PWM frequency (122Hz/244Hz/488Hz/976Hz), supply voltage of 12-48V DC, maximum connection current of 8A. Configuration via DALICockpit software and DALI USB interface. IP20 housing. Input voltage: 12-48V, Conformity: CE, Service life: 100,000 h. Dimensions (L x W x H): 59 x 33 x 15 mm.

Brand: LUNATONE
Color control: RGBW
Connection type CC: -
DALI: Yes
DALI Device Type: DT8
Different bus system: -
Dimming: Yes
Dimming method: PWM constant voltage CV
Division units: -
Manufacturer item number: 86458509
Manufacturer type: DALI DT8 RGBW CV8A
Mounting type: flush-mounted
Number of outputs: 4
old Voltus number: 1605038
Output current in mA: 8000
Rated voltage outputs: 12 - 48V DC
Size of connection terminal in mm2: 2.50

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Deeplink

Produktdatenblatt

Manufacturer information

LUNATONE
Lunatone Industrielle Elektronik GmbH
Paukerwerkstraße 5
1210 Wien
AT

office@lunatone.com
www.lunatone.com/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: LUNATONE
Color control: RGBW
Connection type CC: -
DALI: Yes
DALI Device Type: DT8
Different bus system: -
Dimming: Yes
Dimming method: PWM constant voltage CV
Division units: -
Manufacturer item number: 86458509
Manufacturer type: DALI DT8 RGBW CV8A
Mounting type: flush-mounted
Number of outputs: 4
old Voltus number: 1605038
Output current in mA: 8000
Rated voltage outputs: 12 - 48V DC
Size of connection terminal in mm2: 2.50
