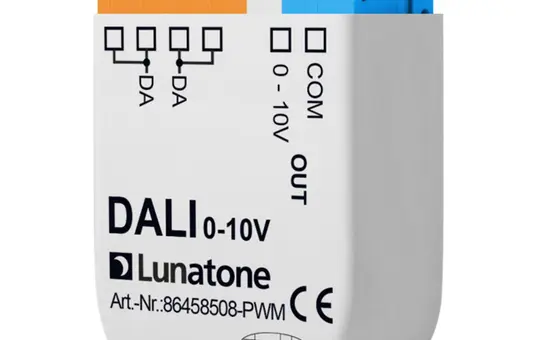

LUNATONE 86458508-PWM DALI analog interface output | PWM

Manufacturer: LUNATONE

Article no.: 20007688

EAN: 9010342010705

Manufacturer item number: 86458508-PWM

Manufacturer type: DALI 0-10V-PWM

Weight: 0,058 kg

In stock

Delivery: 2-3 business days

22,43 €

incl. VAT + shipping

pcs

The DALI 0-10V PWM interface enables the integration of luminaires with a 0-10V control input into a DALI system. It converts DALI signals into a PWM output signal and is suitable for controlling electronic ballasts with a 0-10V control input. The interface offers two control characteristics and galvanic isolation between the DALI and PWM outputs. It is powered directly via the DALI line and represents an addressable device on the bus. Technical specifications: Current consumption from DALI bus: 3.1 mA, Output: 488 Hz PWM (0-100%), Dimensions: 42 mm x 28 mm x 14 mm, Weight: ~10 g, Temperature range: 0°C - 45°C, Protection class: IP20, Connecting wire cross-section: 0.5 - 1.5 mm².

Brand: LUNATONE
Color control: -
Connection type CC: -
DALI: Yes
DALI Device Type: DT5
Different bus system: -
Dimming method: 0-10V
Division units: -
Manufacturer item number: 86458508-PWM
Manufacturer type: DALI 0-10V-PWM
Mounting type: flush-mounted
Number of outputs: 1
old Voltus number: 1623439
Rated voltage outputs: 0 - 10V DC
Size of connection terminal in mm2: 2.50
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Deeplink

Manufacturer information

LUNATONE
Lunatone Industrielle Elektronik GmbH
Paukerwerkstraße 5
1210 Wien
AT

office@lunatone.com
www.lunatone.com/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: LUNATONE
Color control: -
Connection type CC: -
DALI: Yes
DALI Device Type: DT5
Different bus system: -
Dimming method: 0-10V
Division units: -
Manufacturer item number: 86458508-PWM
Manufacturer type: DALI 0-10V-PWM
Mounting type: flush-mounted
Number of outputs: 1
old Voltus number: 1623439
Rated voltage outputs: 0 - 10V DC
Size of connection terminal in mm2: 2.50
Type of transmission: Cable
