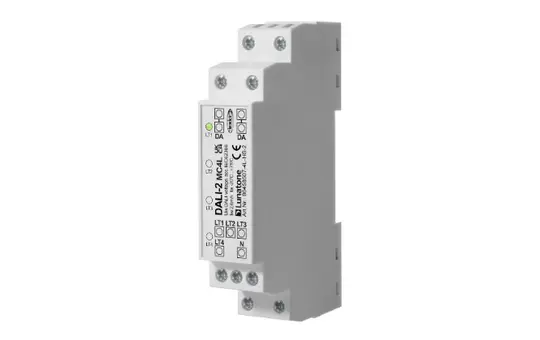

LUNATONE 86458507-4L-HS-2-app DALI-2 Binary Input REG 4-way, app controller activated

LUNATONE 86458507-4L-HS-2-app DALI-2 Binary Input REG | 4-way, app controller activated

Manufacturer: LUNATONE
Article no.: 20033141
EAN: 9010342012303
Manufacturer item number: 86458507-4L-HS-2-app
Manufacturer type: DALI-2 MC-4L-HS-2-app
Weight: 0,056 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
DALI control module with four switching inputs galvanically isolated from the DALI bus for mains voltage. Each input can be assigned an effective range, switching behaviour, and DALI commands. In addition to the standard functions such as dimming, switching, scene recall, etc., predefined macros for controlling colour temperature, dynamic scenes, sequences, and user-defined command lists are also supported. The compact device can be installed in the flush-mounted box behind the switch.

In variant 86458507-4L-2-app, the application controller is activated. In addition to the standard DALI commands, DALI DT8 TC and RGB(W) control are also supported. The device can also be set to instance mode using the DALI Cockpit PC software.
BAB-Tec
No
Bluetooth
No
Brand
LUNATONE
Casambi
No
Class
Binary input
Colour
white
Configuration
binary
DALI
Yes
Division units
1 TE
ENOcean
No
free@home
No
Gira One
No
Hager KNXeasy
No
Installation location
distribution cabinet
JUNG HOME
No
KNX
No
KNX-RF
No
KNX-Secure
No
KNX-TP
No
Manufacturer item number
86458507-4L-HS-2-app
Manufacturer type
DALI-2 MC-4L-HS-2-app
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
Series installation
Number of inputs
4
Potential free
No
Rated voltage inputs
230V AC
Shelly
No
Siemens LOGO!
No
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
