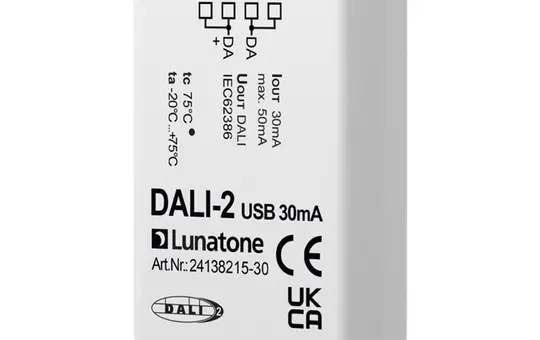

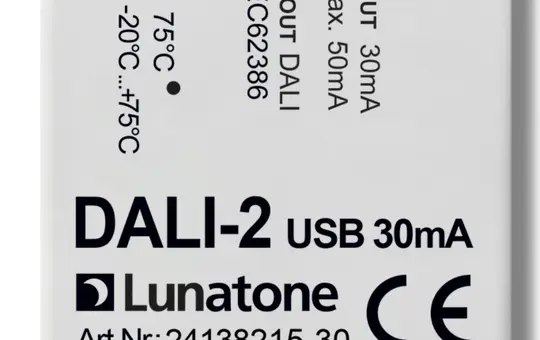

LUNATONE 24138215-30 DALI-2 USB Interface Flush-mounted, 30 mA

LUNATONE 24138215-30 DALI-2 USB Interface | Flush-mounted, 30 mA

Manufacturer: LUNATONE
Article no.: 20033142
EAN: 9010342014000
Manufacturer item number: 24138215-30
Manufacturer type: DALI-2 USB 30mA
Weight: 0,028 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs

The DALI-2 USB interface from Lunatone with the article number 24138215 30 is a compact device that enables direct access to the DALI bus via a computer. It is ideal for commissioning, configuring, and analysing DALI systems and is powered via USB. The connection is made via a USB-C port, and a suitable cable is already included.

The module provides its own bus power supply with up to 30 milliamperes. This can be switched on and off via the DALI Cockpit software. This allows smaller DALI installations to be powered directly without the need for an additional power source. Communication is reliable and interference-free, as the USB and DALI sides are electrically isolated.

The interface supports both classic DALI commands and DALI-2, as well as various extended protocols, including eDALI and manufacturer-specific extensions. Additionally, the device is equipped with the LUBA protocol, which enables serial communication and thus opens up further control options.

With dimensions of 59 x 33 x 15 millimetres, the device easily fits into a flush-mounted box or can be installed in enclosures of protection class II. The connection terminals are designed for conductor cross-sections from 0.25 to 1.5 square millimetres and can be operated without tools.

The interface is designed for use in demanding environments. It operates reliably at temperatures between minus 20 and plus 75 degrees Celsius and achieves a service life of over 50,000 hours. The software automatically recognises the device under Windows 10 and later versions. Firmware updates can be performed directly via the USB connection.

Overall, the DALI-2 USB interface from Lunatone offers a practical and robust solution for anyone working with DALI systems who wants a simple, stable, and versatile connection.

BAB-Tec
No
Bluetooth
No
Brand
LUNATONE
Casambi
No
DALI
Yes
ENOcean
No
free@home
No
Gira One
No
Hager KNXeasy
No
Installation location
Wall
JUNG HOME
No
KNX
No
KNX IP-Router
No
KNX-IP-Interface
No
KNX-Line-Coupler
No
KNX-RF
No
KNX-RF media coupler
No
KNX-Secure
No
KNX-TP
No
KNX-USB-Interface
No
Manufacturer item number
24138215-30
Manufacturer type
DALI-2 USB 30mA
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Shelly
No
Siemens LOGO!
No
Theben LUXORliving
No
Thread
No
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manufacturer information
LUNATONE
Lunatone Industrielle Elektronik GmbH
Paukerwerkstraße 5
1210 Wien
AT

office@lunatone.com
www.lunatone.com/
