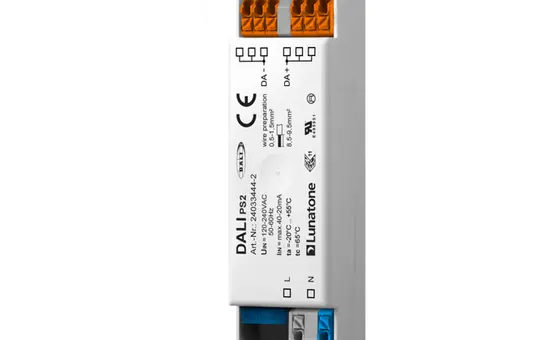

LUNATONE 24033444-2 DALI Power Supply DE | 230mA

Manufacturer: LUNATONE

Article no.: 20007597

EAN: 9010342010019

Manufacturer item number: 24033444-2

Manufacturer type: DALI-2 PS2

Weight: 0,077 kg

In stock

Delivery: 2-3 business days

pcs

-Zentral DALI power supply

-Output current up to 230 mA

-Suitable for supplying a complete DALI circuit with 64 standard DALI devices

-DALI is not SELV. Installation regulations for low voltage apply

Technical data

Supply: from mains

Supply voltage 120/240 VAC

Supply frequency 50/60 Hz

Maximum power 4 W

DALI output

Maximum output current 230 mA

Temperature 0-50 degrees C

Protection class IP20

Connection wires cross-section max. 2.5 mm²

Dimensions (LxWxH): 120.20 mm x 30.16 mm x 21.60 mm

BAB-Tec: No
Bluetooth: No
Brand: LUNATONE
Casambi: No
Class: Power supplies
DALI: Yes
ENOcean: No
free@home: No
Gira One: No
Hager KNXeasy: No
Installation location: distribution cabinet
JUNG HOME: No
KNX: No
KNX-RF: No
KNX-Secure: No
KNX-TP: No
Manufacturer item number: 24033444-2
Manufacturer type: DALI-2 PS2
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Output current in mA: 230
Secondary voltage: No
Shelly: No
Siemens LOGO!: No
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with diagnostic function: No
with Netatmo: No
with UPS: No
Zigbee: No
