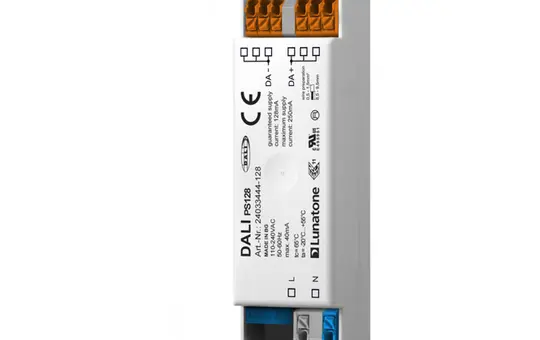

LUNATONE 24033444-128 DALI Power Supply DE 150mA

LUNATONE 24033444-128 DALI Power Supply DE | 150mA

Manufacturer: LUNATONE
Article no.: 20007598
EAN: 9010342010026
Manufacturer item number: 24033444-128
Manufacturer type: DALI-2 PS128
Weight: 0,078 kg
Available on request
Electrical appliance take-back
pcs
The DALI PS supplies the DALI bus system with the necessary power. Standard-compliant voltage as well as current limitation and timing ensure reliable bus communication. With an output current of up to 250mA, an entire DALI line can be powered. For example, up to 64 addressable participants and a further 30 control modules (DALI sensors, MC, touch panel) can be connected with a total load of up to 200mA.



Technical data:

Ambient temperature: -20 degrees Celsius to +55 degrees Celsius

Protection class: IP20

Connection wire cross-section: max. 1.5mm²

Mounting: ceiling insertion

Function:

Device type: DALI bus power supply



Electrical data:

Supply: 110V/240V AC 50/60Hz

Output current: 150mA/128mA guaranteed

Max. connection current: 40mA (at 110V) / 20mA (at 240V)

Rated power: 4W

Output: DALI



Housing and dimensions:

Length: 120mm

Width: 30mm

Height: 22mm

Colour: grey



For further information and data, please refer to the manufacturer’s datasheet (under documentation).
BAB-Tec
No
Bluetooth
No
Brand
LUNATONE
Casambi
No
Class
Power supplies
DALI
Yes
ENOcean
No
free@home
No
Gira One
No
Hager KNXeasy
No
Installation location
distribution cabinet
JUNG HOME
No
KNX
No
KNX-RF
No
KNX-Secure
No
KNX-TP
No
Manufacturer item number
24033444-128
Manufacturer type
DALI-2 PS128
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Output current in mA
128
Secondary voltage
No
Shelly
No
Siemens LOGO!
No
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
Wi-Fi
No
Wiser Home
No
with diagnostic function
No
with Netatmo
No
with UPS
No
Zigbee
No
