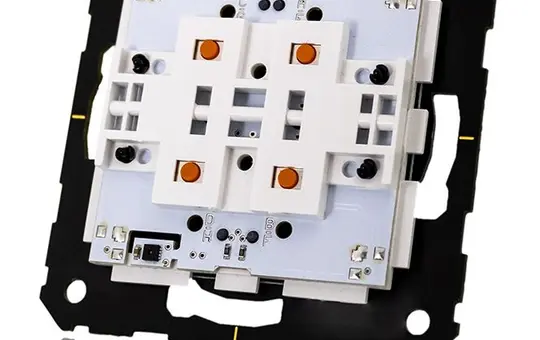

LINGG&JANKE 87863SEC KNX Touch Sensor Secure with RGB LEDs 4-fold, temperature/humidity sensor

LINGG&JANKE 87863SEC KNX Touch Sensor Secure with RGB LEDs | 4-fold, temperature/humidity sensor

Manufacturer: LINGG&JANKE
Article no.: 20033205
EAN: 4260049688669
Manufacturer item number: 87863SEC
Manufacturer type: TA4F55RGBTH-BCU-SEC
Weight: 0,006 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
58,42 €
incl. VAT + shipping
pcs
KNX Secure 4-Gang Touch Sensor TH for Flush Mounting, 4 Binary Inputs/Outputs - Exclusiv 55 Series


Rocker dimensions 55 x 55 mm - compatible with frames from various manufacturers - complete with KNX flush-mounted bus coupler, integrated temperature and humidity sensor - 4 RGB LEDs - colours: red, green, blue, yellow, cyan, magenta, white fixed setting - programming is done using ETS software from ETS4 onwards


Technical Data:


  • Max. group addresses: 80

  • Input signal: 8x potential-free, max. cable length 5 m

  • LED outputs: 4x RGB via plug-in module

  • Temperature sensor: -40 to +120 degrees Celsius

  • Humidity sensor: 0 to 100 % relative humidity

  • Protection rating: IP20

  • Dimensions (W x H x D): 71 x 71 x 20 mm

  • Mounting: flush-mounted switch box

  • Operating temperature: -5 to +45 degrees Celsius

  • Terminal block black/red: KNX connection


Product image differs; touch sensor is supplied with RGB LEDs.
BAB-Tec
No
Bluetooth
No
Brand
LINGG&JANKE
Casambi
No
Class
Touch sensors
CO2 sensor
No
Color temperature control
No
Customizable
No
DALI
No
ENOcean
No
fits in 55 switch range
Yes
free@home
No
Gira One
No
Hager KNXeasy
No
Humidity sensor
Yes
Infrared sensor
No
Installation location
Wall
Integrated actuator
No
Integrated binary input
Yes
Integrated room temperature controller
No
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
Yes
KNX-TP
Yes
Label field
No
Manufacturer item number
87863SEC
Manufacturer type
TA4F55RGBTH-BCU-SEC
Material
Plastic
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
flush-mounted
Number of binary inputs
4
Number of buttons
4
Operating mode
push button
Protection class (IP)
IP20
Proximity sensor
No
RGB lighting control
No
RGB status LED
Yes
Shelly
No
Siemens LOGO!
No
Status LED, control light
Yes
suitable for installation in switch ranges
Yes
Temperature sensor
Yes
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with display
No
with Netatmo
No
Zigbee
No
Manufacturer information
LINGG&JANKE
Lingg & Janke OHG
Zeppelinstr. 30
78315 Radolfzell
DE

verkauf@lingg-janke.de
lingg-janke.de/
