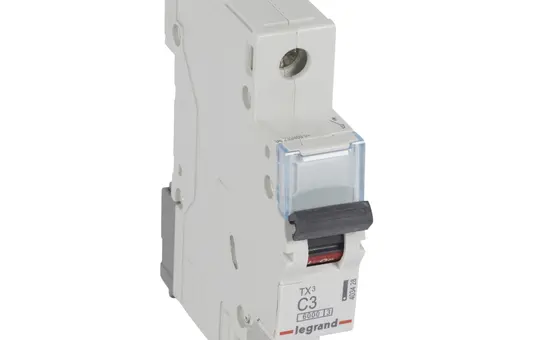

LEGRAND LS C3 1P 6KA TX³ Circuit Breaker 1-pole Type C 3 A

LEGRAND LS C3 1P 6KA TX³ Circuit Breaker 1-pole Type C | 3 A

Manufacturer: LEGRAND
Article no.: 20036054
EAN: 3414970388100
Manufacturer item number: 403428
Manufacturer type: LS C3 1P 6KA
Weight: 0,11 kg
Available on request
Electrical appliance take-back
pcs
Legrand TX3 miniature circuit breaker according to EN 60898-1, VDE 0641-11, EN 60947-2, single-pole, C-characteristic, rated current In 3 A, rated breaking capacity Icn 6 kA according to EN 60898-1, rated voltage Un 230/400 VAC, rated frequency 50/60 Hz, energy limiting class 3, mounting on EN 60715 DIN rail via a snap-on quick fastening, clear information on the front of each device, unambiguous red/green switching position indicator on the toggle lever, with labelling window, with finger protection for safe conductor insertion into the terminal clamp, auxiliary devices can be fitted. Miniature circuit breakers with C-characteristic are intended for circuit protection of devices with high inrush currents (e.g. motors and transformers).
Brand
LEGRAND
Breaking capacity in kA
6
Class
Circuit breaker
Connection technology
screw terminal
Division units
1 TE
Manufacturer item number
403428
Manufacturer type
LS C3 1P 6KA
Number of poles
1-pole
Rated current in A
3
Trigger characteristics
C
Manufacturer information
LEGRAND
Legrand GmbH
Am Silberg 14
59494 Soest
DE

info.service@legrand.de
www.legrand.de/de

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
