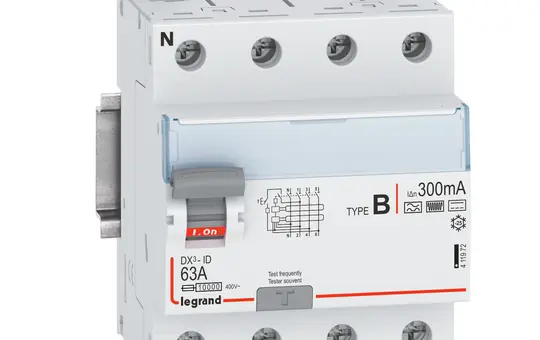

LEGRAND 411972 DX³ FI/LS switch type B 300 mA 63A, 4-pole

LEGRAND 411972 DX³ FI/LS switch type B 300 mA | 63A, 4-pole

Manufacturer: LEGRAND
Article no.: 20057649
EAN: 3414972087926
Manufacturer item number: 411972
Manufacturer type: 411972
Weight: 0,381 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
The Legrand residual current circuit breaker DX3-ID, Type B, is a 4-pole, all-current sensitive switch for alternating, pulsating, and smooth direct residual currents, compliant with VDE 0664-10, VDE 0664-11, and EN 61008-1. It detects residual currents in the frequency range from 0 Hz to 1 kHz and offers a short-time delayed trip with a high trip threshold, minimising false trips.
With a rated current of 63 A and a rated residual current of 300 mA, the switch is suitable for 400 VAC. The short-circuit withstand capacity is 10 kA, and it can withstand surge currents up to 3000 A. Mounting is on DIN rails, and it features a red/green switching indicator as well as a labelling window. Applications include commercial and industrial installations such as photovoltaic systems, air conditioning units, and medical devices. The switch is IP20, halogen-free, and suitable for conductor cross-sections from 0.75 to 50 mm².
Brand
LEGRAND
Class
FI/LS switch
Configuration
4-pole
Division units
4 TE
Fault current type
Type B
Manufacturer item number
411972
Manufacturer type
411972
Manufacturer information
LEGRAND
Legrand GmbH
Am Silberg 14
59494 Soest
DE

info.service@legrand.de
www.legrand.de/de
