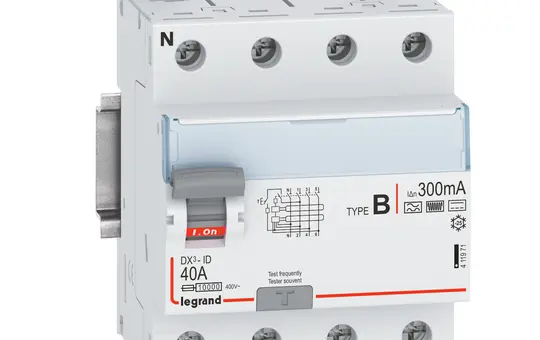

LEGRAND 411971 DX³ Residual Current Circuit Breaker 4-pole 300mA Type B 40A

LEGRAND 411971 DX³ Residual Current Circuit Breaker 4-pole 300mA Type B | 40A

Manufacturer: LEGRAND
Article no.: 20056915
EAN: 3414972087889
Manufacturer item number: 411971
Manufacturer type: 411971
Weight: 0,376 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
Legrand residual current circuit breaker DX3-ID, type B, all-current sensitive, for alternating, pulsating and smooth direct residual currents, according to VDE 0664-10, VDE 0664-11, VDE 0664-40, EN 61008-1, EN 61008-2-1, EN 62423, detection of residual currents in the frequency range 0 Hz to 1 kHz, short-time delayed, with high trip threshold for increased operational safety (reduces false tripping), 4-pole, rated current In 40 A, rated residual current Idn 300 mA, rated voltage Un 400 VAC, rated frequency 50 Hz, rated short-circuit current 10 kA with suitable upstream protection, surge current withstand up to 3000 A, 4-module, mounting on EN 60715 top-hat rail by quick fastening, clear information on the front of each device, distinct switching position indicator red/green on the toggle lever, with labelling window, with plug-in protection for safe conductor insertion into elevator terminal, auxiliary device mounting possible. Neutral conductor connection on the left.
Brand
LEGRAND
Class
Residual current circuit breaker
Configuration
4-pole
Division units
4 TE
Fault current type
Type B
Manufacturer item number
411971
Manufacturer type
411971
Manufacturer information
LEGRAND
Legrand GmbH
Am Silberg 14
59494 Soest
DE

info.service@legrand.de
www.legrand.de/de

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
