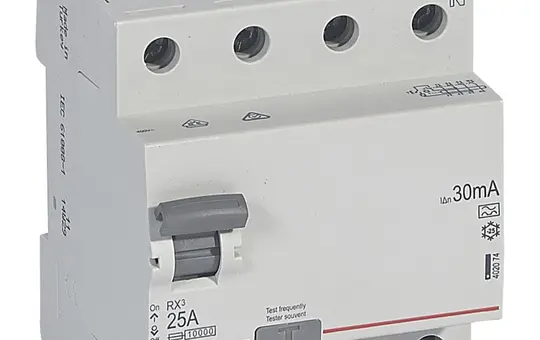

LEGRAND 402074 RX³ Circuit Breaker Type A 30 mA 25A, 4-pole

LEGRAND 402074 RX³ Circuit Breaker Type A 30 mA | 25A, 4-pole

Manufacturer: LEGRAND
Article no.: 20057636
EAN: 3245064020749
Manufacturer item number: 402074
Manufacturer type: 402074
Weight: 0,332 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
The Legrand RX3 residual current device, Type A, is designed to protect against alternating and pulsating direct residual currents and complies with the requirements of VDE 0664-10 and EN 61008-1. With a rated current of 25 A and a residual current of 30 mA, it is suitable for a rated voltage of 400 VAC. The switch is 4-pole and instantaneous, ensuring immediate response to fault currents. It can be mounted on a DIN rail and is designed with a protection rating of IP20 for dry indoor environments. The short-circuit withstand capacity is 10 kA, and it is surge current resistant up to 250 A. Additional safety is provided by the integrated locking device. The RX3 has a width of 4 modules, an installation depth of 44 mm, and is halogen-free. Connection options are available for both multi-stranded and single-stranded conductors. The attachment of auxiliary devices is not possible, and it features a labelling field as well as a switching position indicator.
Brand
LEGRAND
Class
Circuit breaker
Configuration
4-pole
Division units
4 TE
Fault current type
Type A
Manufacturer item number
402074
Manufacturer type
402074
Manufacturer information
LEGRAND
Legrand GmbH
Am Silberg 14
59494 Soest
DE

info.service@legrand.de
www.legrand.de/de

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
