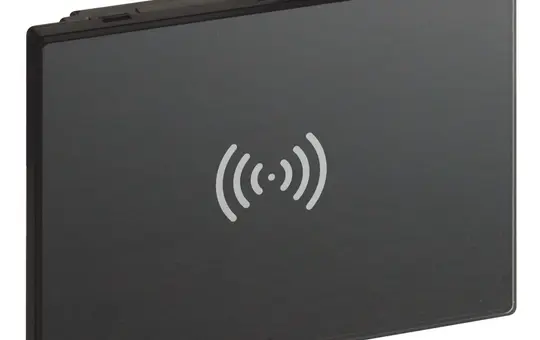

LEGRAND 345520 RFID module LINEA 5000 | Standard | SW

Manufacturer: LEGRAND

Article no.: 20081164

EAN: 8005543746103

Manufacturer item number: 345520

Manufacturer type: 345520

Weight: 0,33 kg

Available on request

255,50 €

incl. VAT + shipping

pcs

Additional RFID module for activating electric door openers in 2-wire systems with at least one Linea 5000 door station (Order No. 345000). Transponders/badges (Order No. 34820x) are used for access. The module is equipped with a relay contact (C - NO - NC) and a connection (CP - P1) for a local door opener button. Commissioning is performed exclusively via the Home + Project app. The module features a reset button, LEDs for displaying the access status, and a nighttime backlight. The RFID module must be supplemented with a corresponding 1-module cover frame and can only be used as a standalone device. Combination with the Linea 5000 is not possible. For standalone installation, the 1-module flush-mounted box (Order No. 350010) or the surface-mounted housing (Order No. 34531x) is used.

Brand: LEGRAND
Class: RFID and NFC devices
Color: black
Installation technology: Bus system
Manufacturer item number: 345520
Manufacturer type: 345520
