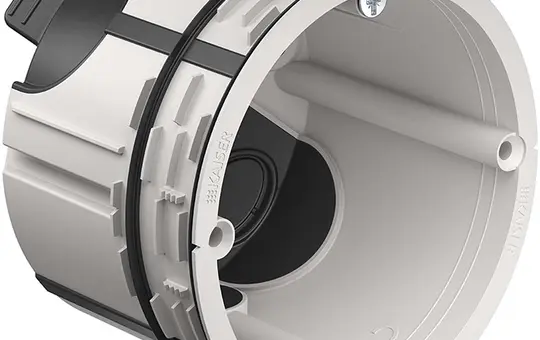

KAISER 9264-72 Hollow Wall Device Junction Box O-range ECON halogen free | 62 mm

KAISER 9264-72 Hollow Wall Device Junction Box O-range ECON | halogen free | 62 mm

Manufacturer: KAISER
Article no.: 20043198
EAN: 4013456551039
Manufacturer item number: 9264-72
Manufacturer type: 9264-72
Weight: 0,033 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
Device Connection Box O-range ECON® Fix



The device connection box O-range ECON® Fix makes installation significantly faster and easier thanks to tab-free clamping rib mounting in various wall material combinations such as OSB boards, cross-laminated or solid wood, gypsum fibreboards, or even exposed masonry.



Continuous sealing fins on two levels ensure the maintenance of the airtight layer. The applied centring ribs enable precise and comfortable installation of the device connection box in the installation opening without jamming.



PLUG IN ALIGN CLAMP DONE!




  • Clamping rib mounting for different wall constructions, e.g. solid wood

  • Continuous sealing fins on 2 levels to maintain the airtight layer

  • 4 screw domes for maximum flexibility in device fastening

  • Tool-free cable and conduit entry

  • Device screws with plus-minus drive

Airtight
Yes
Brand
KAISER
Class
Hollow wall boxes
Colour
white
Configuration
1-fold
Depth in mm
62
Halogen free
Yes
Manufacturer item number
9264-72
Manufacturer type
9264-72
Mounting type
flush-mounted
Pipe diameter
M20 | M25
with screws
Yes

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manufacturer information
KAISER
KAISER GmbH & Co. KG
Ramsloh 4
58579 Schalksmühle
DE

info@kaiser-elektro.de
www.kaiser-elektro.de/de_DE/
