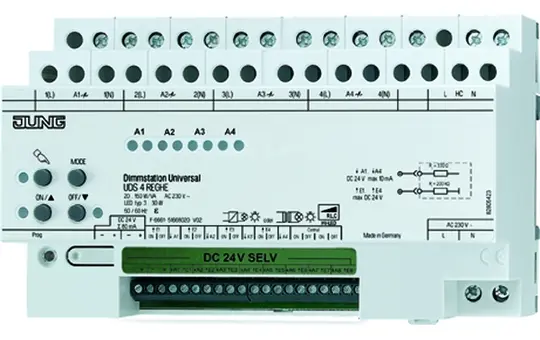

JUNG UDS4REGHE LED Universal Dimming Station 2-Wire 4-fold

JUNG UDS4REGHE LED Universal Dimming Station 2-Wire | 4-fold

Manufacturer: JUNG
Article no.: 20038520
EAN: 4011377055162
Manufacturer item number: UDS 4 REGHE
Manufacturer type: UDS4REGHE
Weight: 0,525 kg
Available on request
Electrical appliance take-back
pcs
REG enclosure 8 TE

Intended use
Switching and dimming of incandescent lamps, HV halogen lamps, dimmable HV LED lamps, dimmable compact fluorescent lamps, dimmable inductive transformers with LV halogen or LV LED lamps, dimmable electronic transformers with LV halogen or LV LED lamps
Suitable for mixed loads up to the specified total power
No mixed load operation of electronic and inductive transformers at the same load output
Operation via sensor modules, push-button sensor modules, 24 V push-button sensors, 24 V push-button sensor modules or unlit installation push-buttons
Mounting on DIN EN 60715 top-hat rail in sub-distribution boards
Operation of the device with universal power add-ons in combination with electronic transformers is not possible!
Use Tronic power add-ons for power extension when operating electronic transformers.

Product features
Keypad for operating the dimming station
Control of feedback LEDs at the operating points.
Brand
JUNG
Class
relay
Configuration
Multifunction time relay
Control voltage
230V
Division units
8 TE
Manufacturer item number
UDS 4 REGHE
Manufacturer type
UDS4REGHE
Switch contact
1 closer

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Manual
Deeplink
Manufacturer information
JUNG
Albrecht Jung GmbH & Co. KG
Volmestr. 1
58579 Schalksmühle
DE

kundencenter@jung.de
www.jung-group.com/de-DE/

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
