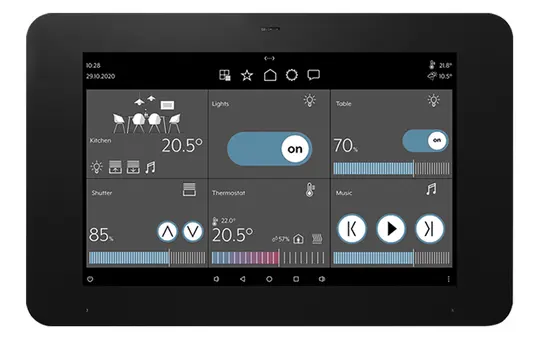

JUNG SP0081U KNX Smart Panel | black | 8 inches

Manufacturer: JUNG

Article no.: 20019833

EAN: 4011377195448

Manufacturer item number: SP0081U

Manufacturer type: SP 0081 U

Weight: 0,988 kg

In stock

Delivery: 2-3 business days

pcs

Intended Use

Visualising and operating system states in building automation
Horizontal mounting (recommended) or vertical mounting
Mounting in flush-mounted housing (art. no. EBG 24) or on device box with dimensions according to DIN 49073 (recommendation: approx. 60 mm deep)

Product Features

High-resolution HD display
Proximity sensor
Capacitive touchscreen
Cleaning mode with touchscreen lock
Fanless, without mechanically moving parts
Integrated bus coupler
Graphical user interface for visualising and operating KNX devices
Configuration with Windows software "KNX Smart Panel Designer" (minimum requirements: Windows 10, 64-bit, 120 MB free storage)
Commissioning with ETS from version 5.7.4 and DCA
KNX special functions, e.g. scenes, sequences, central function, presence simulation
Rooms or elements: max. 300, structured across several rooms or as individual rooms
Schedules: max. 125 with 10 commands each
Logical links.

BAB-Tec: No
Bluetooth: No
Brand: JUNG
Casambi: No
Class: Touch panels
CO2 sensor: No
Color temperature control: No
Colour: black
Configuration: stand-alone
Connections: KNX
DALI: No
ENOcean: No
fits in 55 switch range: Yes
free@home: No
Gira One: No
Hager KNXeasy: No
Humidity sensor: No
Integrated room temperature controller: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
Manufacturer item number: SP0081U
Manufacturer type: SP 0081 U
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting on switch box possible: No
Mounting type: flush-mounted
Operating mode: Touch
Power supply: 24VDC
Proximity sensor: No
RGB lighting control: No
Screen diagonal in inches: 8
Shelly: No
Siemens LOGO!: No
suitable for installation in switch ranges: No
Temperature sensor: No
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
VOC sensor: No
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Manufacturer information

JUNG
Albrecht Jung GmbH & Co. KG
Volmestr. 1
58579 Schalksmühle
DE

kundencenter@jung.de
www.jung-group.com/de-DE/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description
