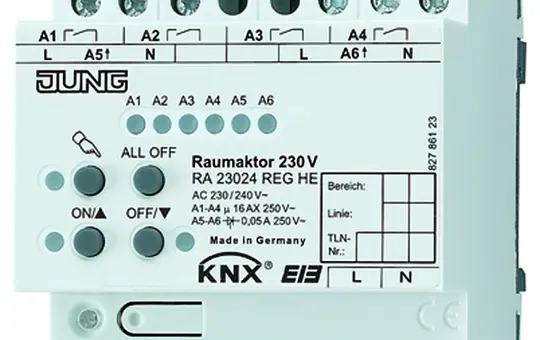

JUNG RA23024REGHE KNX room actuator | 230V

Manufacturer: JUNG

Article no.: 20038473

EAN: 4011377036000

Manufacturer item number: RA23024REGHE

Manufacturer type: RA 23024 REGHE

Weight: 0,26 kg

Available on request

184,80 €

incl. VAT + shipping

pcs

REG housing 4 TE with electronic manual operation and LED status display Full functionality is supported from ETS3.0d or higher. ETS product family Output Product type Binary output mix Intended use Switching electrical consumers AC 110 ... 230 V with potential-free contacts Switching electrically operated blinds, roller shutters, awnings and similar hangings Heating outputs: Electronic outputs for switching electrothermal actuators Product features Outputs can be operated manually, construction site operation Feedback in manual mode and bus mode Scene function Blocking individual outputs manually or by bus Switching function NO or NC operation Logic and forced operation function Feedback function Central switching function with collective feedback Time functions: On/off delay, staircase light switch with switch-off warning.

Blinds: Yes
Brand: JUNG
Class: Universal actuators
Different bus system: -
Different phases can be connected: Yes
Division units: 4
Heating: Yes
KNX: Yes
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: RA23024REGHE
Manufacturer type: RA 23024 REGHE
Mounting type: Series installation
Number of blind outputs: 2
Number of outputs: 6
old Voltus number: 1059261
Rated voltage outputs: 230V AC
Size of connection terminal in mm2: 4.00
suitable for C load: Yes
Switch: Yes
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Bedien- & Installationsanleitung

Deeplink

Manufacturer information

JUNG
Albrecht Jung GmbH & Co. KG
Volmestr. 1
58579 Schalksmühle
DE

kundencenter@jung.de
www.jung-group.com/de-DE/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Blinds: Yes
Brand: JUNG
Class: Universal actuators
Different bus system: -
Different phases can be connected: Yes
Division units: 4
Heating: Yes
KNX: Yes
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: RA23024REGHE
Manufacturer type: RA 23024 REGHE
Mounting type: Series installation
Number of blind outputs: 2
Number of outputs: 6
old Voltus number: 1059261
Rated voltage outputs: 230V AC
Size of connection terminal in mm2: 4.00
suitable for C load: Yes
Switch: Yes
Type of transmission: Cable
