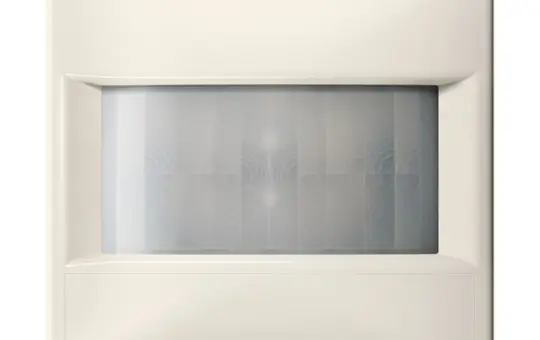

JUNG CD3181-1 KNX motion detector series CD 1.10 m, universal | white

JUNG CD3181-1 KNX motion detector series CD | 1.10 m, universal | white

Manufacturer: JUNG
Article no.: 20018147
EAN: 4011377155688
Manufacturer item number: CD3181-1
Manufacturer type: CD 3181-1
Weight: 0,04 kg
Available on request
162,98 €
incl. VAT + shipping
pcs
Universal for bus coupling unit 3 Item no.: 2073 U ETS product family Physical sensors Product type Motion detector Intended use Demand-based control of lighting and other electrical consumers in indoor spaces Installation on bus coupling unit 3 (Item no.: 2073 U) Product features Automatic switching of lighting, depending on heat movement and ambient brightness 2 PIR sensors Detection range 180° Integrated brightness sensor Adjustable switch-off brightness Output functions: Switching, staircase light function, switching with forced position, value transmitter, light scene extension, operating mode specification for room temperature controller Extension of the detection area by operating several devices as main and extension units Sensitivity can be adjusted manually Status LEDs Manual switching on the device Detection field can be dimmed by half (aperture or parameter setting) Additional features "Universal" version: Manual operation with IR remote control possible.
Brand
JUNG
Class
Motion detector
Color
white
Detection angle in °
6
Detection area
circular
Detection area diameter in m
10
Detection type/sensor type
Passive infrared
Different bus system
-
Frontal range in m
8.00
Horizontal detection angle
180
Installation height in m
1.10
Installation location
Wall
KNX
Yes
KNX-TP
Yes
Manufacturer item number
CD3181-1
Manufacturer type
CD 3181-1
Manufacturer's color
white
Mounting type
flush-mounted
Number of areas
1
old Voltus number
1662124
Reach laterally in m
5.00
suitable for installation in switch ranges
Yes
suitable for wall mounting
Yes
Supply voltage
BUS voltage
Surface
glänzend
Type of transmission
Cable
