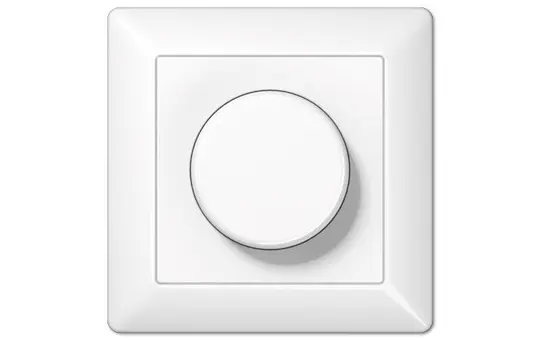

JUNG AS5544.03VWW rotary dimmer complete series AS | RL, LED, 200W | alpine white

Manufacturer: JUNG

Article no.: 20018717

EAN: 4011377167124

Manufacturer item number: AS5544.03VWW

Manufacturer type: AS5544.03VWW

Weight: 0,178 kg

In stock

Delivery: 2-3 business days

25,53 €

incl. VAT + shipping

pcs

Complete with cover and integrated frame without extension input. Can only be installed as a single device, not suitable for combinations! Intended use Switching and dimming of incandescent lamps, HV halogen lamps and phase-cut dimmable HV LED lamps Operation with suitable cover Installation in device box with dimensions according to DIN 49073 Product features Dimming principle Phase-cut Short-circuit protection by fine-wire fuse Nominal voltage: AC 230 V ~ Mains frequency: 50 Hz Standby power: approx. 0.2 W Power loss: approx. 3.7 W Ambient temperature: −5 ... +45 °C Connected load at 25 °C Incandescent lamps: 20 ... 200 W HV halogen lamps: 20 ... 200 W HV LED lamps dimmable: typically 3 ... 40 W Ohmic and HV LED: typically 3 ... 40 W Power reduction for surface mounting: −5 % per 5 °C exceeding 25 °C: −10 % for installation in wood or Drywall: −15 % Fine-wire fuse: T 800 mA H 250 Connection type: Screw terminals

Brand: JUNG
Class: dimmer
Dimming method: Phase lead/edge
Manufacturer item number: AS5544.03VWW
Manufacturer type: AS5544.03VWW
old Voltus number: 1685650
Power in W: 3.70
Series: AS 500
Type of operation: Rotary/push button

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Deeplink

Produktdatenblatt

Manufacturer information

JUNG
Albrecht Jung GmbH & Co. KG
Volmestr. 1
58579 Schalksmühle
DE

kundencenter@jung.de
www.jung-group.com/de-DE/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: JUNG
Class: dimmer
Dimming method: Phase lead/edge
Manufacturer item number: AS5544.03VWW
Manufacturer type: AS5544.03VWW
old Voltus number: 1685650
Power in W: 3.70
Series: AS 500
Type of operation: Rotary/push button
