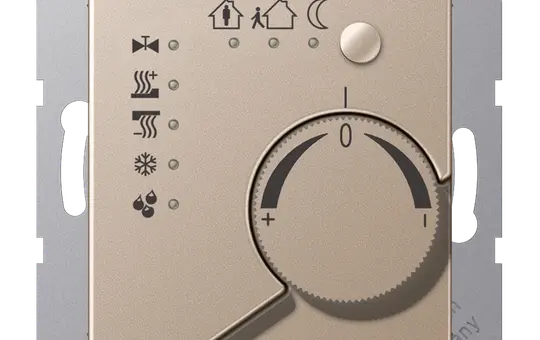

JUNG A2178CH KNX continuous controller A | standard | champagne

Manufacturer: JUNG

Article no.: 20013472

EAN: 4011377097292

Manufacturer item number: A2178CH

Manufacturer type: A2178CH

Weight: 0,078 kg

Available on request

230,86 €

incl. VAT + shipping

pcs

With integrated bus coupling unit with dial for setpoint adjustment. Full functionality is supported from ETS3.0d or higher. ETS product family: Physical sensors. Product type: Temperature. Intended use: Individual room temperature control in KNX installations. Installation in a device box with dimensions according to DIN 49073. Product features: Measurement of the room temperature and comparison with the setpoint temperature. Setpoint specification by selecting the operating mode. Operating modes: Comfort, Standby, Night mode, Frost/Heat protection. Heating and cooling mode. Heating and cooling with basic and additional stages. Dial for setpoint adjustment. Presence button. Status LEDs: KNX. Medium: TP 256. Nominal voltage KNX: DC 21 ... 32 V SELV. Current consumption KNX: max. 10 mA. KNX connection: Terminal. Ambient temperature: −5 ... +45 °C. Storage/transport temperature: −25 ... +70 °C.

Brand: JUNG
Class: Touch sensors
Color: beige
Different bus system: -
fits in 55 switch range: Yes
Installation location: Wall
Integrated room temperature controller: Yes
KNX: Yes
KNX-TP: Yes
Manufacturer item number: A2178CH
Manufacturer type: A2178CH
Manufacturer's color: champagner
Mounting type: flush-mounted
old Voltus number: 1395485
Operating mode: Rotary knob
Series: A 550 | A creation | A Cube | A flow | A Viva | AS 500
Status LED, control light: Yes
suitable for installation in switch ranges: Yes
Surface: matt
Temperature sensor: Yes
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Deeplink

Produktdatenblatt

Manufacturer information

JUNG
Albrecht Jung GmbH & Co. KG
Volmestr. 1
58579 Schalksmühle
DE

kundencenter@jung.de
www.jung-group.com/de-DE/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: JUNG
Class: Touch sensors
Color: beige
Different bus system: -
fits in 55 switch range: Yes
Installation location: Wall
Integrated room temperature controller: Yes
KNX: Yes
KNX-TP: Yes
Manufacturer item number: A2178CH
Manufacturer type: A2178CH
Manufacturer's color: champagner
Mounting type: flush-mounted
old Voltus number: 1395485
Operating mode: Rotary knob
Series: A 550 | A creation | A Cube | A flow | A Viva | AS 500
Status LED, control light: Yes
suitable for installation in switch ranges: Yes
Surface: matt
Temperature sensor: Yes
Type of transmission: Cable
