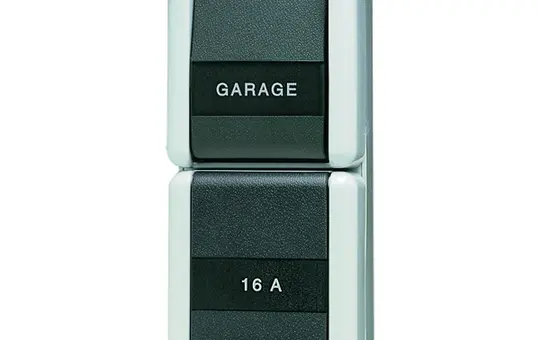

JUNG 876NAW SCHUKO socket, description series WG 800 | 2-fold, with changeover switch

Manufacturer: JUNG

Article no.: 20014548

EAN: 4011377657809

Manufacturer item number: 876NAW

Manufacturer type: 876 NAW

Weight: 0,248 kg

Available on request

26,63 €

incl. VAT + shipping

pcs

with two labels 22 x 48 mm with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2 connection terminals according to DIN VDE 0620 or DIN VDE 0632 (EN 60669) housing 75 x 151 x 58 mm, 2 cable entries switch in OFF position illuminated

Brand: JUNG
Class: Sockets
Color: gray
Configuration: 2-fold
Configuration: SCHUKO (Type F)
Hinged lid: Yes
Impact resistance: -
Label field: Yes
Lettering: without
Manufacturer item number: 876NAW
Manufacturer type: 876 NAW
old Voltus number: 1058507
Protection class (IP): IP44
Rated current in A: 16.00
Series: WG 800, IP44
Surface: glänzend

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Manufacturer information

JUNG
Albrecht Jung GmbH & Co. KG
Volmestr. 1
58579 Schalksmühle
DE

kundencenter@jung.de
www.jung-group.com/de-DE/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: JUNG
Class: Sockets
Color: gray
Configuration: 2-fold
Configuration: SCHUKO (Type F)
Hinged lid: Yes
Impact resistance: -
Label field: Yes
Lettering: without
Manufacturer item number: 876NAW
Manufacturer type: 876 NAW
old Voltus number: 1058507
Protection class (IP): IP44
Rated current in A: 16.00
Series: WG 800, IP44
Surface: glänzend
