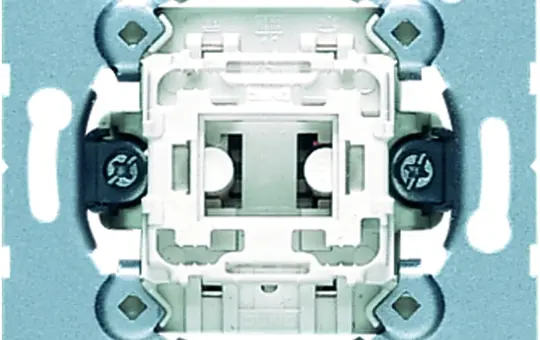

JUNG 531U Rocker Switch | closer

Manufacturer: JUNG

Article no.: 20013786

EAN: 4011377272903

Manufacturer item number: 531U

Manufacturer type: 531U

Weight: 0,07 kg

In stock

Delivery: 2-3 business days

5,98 €

incl. VAT + shipping

pcs

with spring terminals for solid conductors up to 2.5 mm2

Connection terminals according to DIN VDE 0632 (EN 60669)

Can be converted into pull switches with pull insert, article no. 34 or 34 KO5.

Without 'mounting claw': article no. with 'E', e.g. 531 EU

Illuminable via lamp article no.: 90 or 95 (230 V), 96-.. (low voltage) or LED lamp article no.: 90-LED.. (230 V) or 961248 LED.. (low voltage).

Brand: JUNG
Class: Push button
Configuration: 1-fold
Contact type: Closer
Manufacturer item number: 531U
Manufacturer type: 531U
Number of poles: 1-pole
Reporting contact: No
Series: A 550 | A creation | A Cube | A flow | A Viva | AS 500 | CD 500 | CD Aufputz | CD plus | LS 990 | LS Cube | LS design | LS Plus | LS Zero
