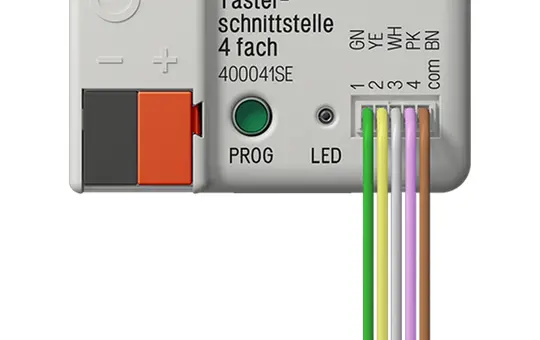

JUNG 40004 1S E KNX push-button interface 4-fold, secure

JUNG 40004 1S E KNX push-button interface | 4-fold, secure

Manufacturer: JUNG
Article no.: 20045027
EAN: 4011377212954
Manufacturer item number: 40004 1S E
Manufacturer type: 40004 1S E
Weight: 0,045 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
The KNX controller is designed for querying conventional potential-free contacts in KNX systems and enables sending telegrams on the KNX bus to control states, counter readings, and consumers.

It can be installed in a device box according to DIN 49073, requiring sufficient installation depth. The controller features independent channels that can be configured as inputs or outputs and does not require an additional power supply as it is powered via the bus.

It is KNX Data Secure compatible and updatable with the ETS Service App. The outputs can drive LEDs and are short-circuit-proof as well as overload-protected.

The inputs allow the connection of push-buttons and sensors, with impulse current querying to avoid contact contamination. Additionally, they support functions such as switching, dimming, and room temperature control, as well as status transmission and logic functions for advanced control options.
BAB-Tec
No
Bluetooth
No
Brand
JUNG
Casambi
No
Class
Button interface
Configuration
binary
DALI
No
ENOcean
No
free@home
No
Gira One
No
Hager KNXeasy
No
Installation location
Wall
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
Yes
KNX-TP
Yes
Manufacturer item number
40004 1S E
Manufacturer type
40004 1S E
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
flush-mounted
Number of inputs
4
Potential free
No
Shelly
No
Siemens LOGO!
No
Theben LUXORliving
No
Thread
No
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manufacturer information
JUNG
Albrecht Jung GmbH & Co. KG
Volmestr. 1
58579 Schalksmühle
DE

kundencenter@jung.de
www.jung-group.com/de-DE/
