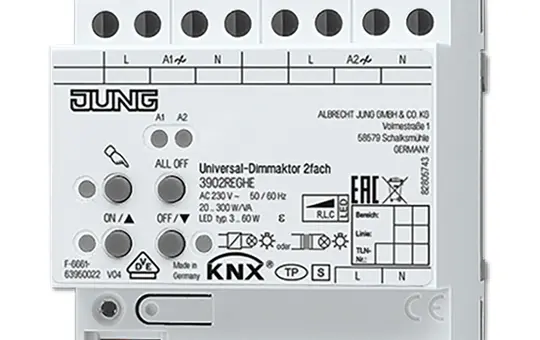

JUNG 3902REGHE KNX dimmer actuator 2-fold

JUNG 3902REGHE KNX dimmer actuator | 2-fold

Manufacturer: JUNG
Article no.: 20019578
EAN: 4011377117013
Manufacturer item number: 3902REGHE
Manufacturer type: 3902 REGHE
Weight: 0,308 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
2 x 300 W, HV LED lamps typ. 2 x 3 ... 60 W REG housing 4 TE ETS product family Lighting Product type Dimmer Intended use Switching and dimming of incandescent lamps, HV halogen lamps, dimmable HV LED lamps, dimmable compact fluorescent lamps, dimmable inductive transformers with LV halogen or LV LED lamps, dimmable electronic transformers with LV halogen or LV LED lamps (from device version V04) Mounting on DIN EN 60715 standard top-hat rail in sub-distribution board

Product features Automatic or manual setting of the dimming principle suitable for the load No-load, short-circuit and over-temperature protection Short-circuit notification Outputs manually operable Feedback of switching state and dimming value Parameterisable switch-on and dimming behaviour Time functions: switch-on and switch-off delay, staircase light switch with switch-off warning Light scene operation Locking of individual outputs manually or via bus Status display of outputs via LED Operating hours counter.
Active power measurement
No
BAB-Tec
No
Blinds
No
Bluetooth
No
Brand
JUNG
Casambi
No
Class
Dimming actuators
DALI
No
Day/night function
No
Different phases can be connected
No
Dimming
Yes
Dimming method
Phase lead/edge
Division units
4 TE
ENOcean
No
Fan coil
No
free@home
No
Gira One
No
Hager KNXeasy
No
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
No
KNX-TP
Yes
Local/manual operation
Yes
Manufacturer item number
3902REGHE
Manufacturer type
3902 REGHE
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
Series installation
Number of outputs
2
Output power in W
300
Parallel operation of channels possible
Yes
Rated voltage outputs
110 - 230V AC
Shelly
No
Siemens LOGO!
No
Size of connection terminal in mm2
4
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manual
Manufacturer information
JUNG
Albrecht Jung GmbH & Co. KG
Volmestr. 1
58579 Schalksmühle
DE

kundencenter@jung.de
www.jung-group.com/de-DE/
