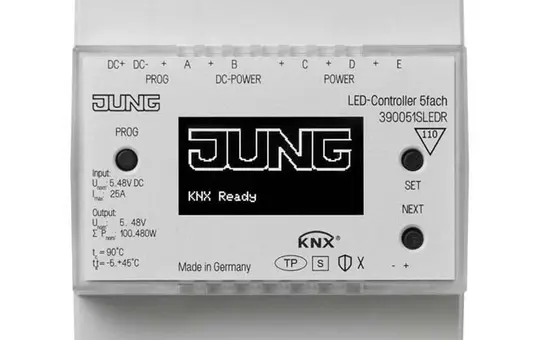

JUNG 390051SLEDR KNX LED Controller | 5-fold

Manufacturer: JUNG

Article no.: 20019929

EAN: 4011377206939

Manufacturer item number: 390051SLEDR

Manufacturer type: 390051SLEDR

Weight: 0,176 kg

In stock

Delivery: 2-3 business days

pcs

REG enclosure 4 TE with electronic manual control and LED status indicator

Planning and commissioning with ETS5 or newer ETS product family

Lighting

Product type

Dimmer

Intended use

Dimmer for controlling LEDs, LED modules, LED spots, halogen lamps and incandescent lamps from 5 V ... 48 V (pulse-width modulated)

Mounting on DIN EN 60715 top-hat rail in sub-distribution boards

Product features

Dimmer for colour temperature and colour light control (RGB/HSV)

Different dimming curves adjustable (soft dimming, deep-down dimming)

PWM frequency adjustable (211 ... 1200 Hz)

Commissioning with display support

Free configuration of channels

Integrated scenes and bit scenes

Predefined and freely definable sequences

Time-controlled dimming.

Active power measurement: No
BAB-Tec: No
Blinds: No
Bluetooth: No
Brand: JUNG
Casambi: No
Class: Dimming actuators
DALI: No
Day/night function: Yes
Different phases can be connected: No
Dimming: No
Dimming method: PWM constant voltage CV
Division units: 4 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: Yes
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: 390051SLEDR
Manufacturer type: 390051SLEDR
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Series installation
Number of outputs: 5
Output current in mA: 20000
Output power in W: 480
Parallel operation of channels possible: Yes
Rated voltage outputs: 5 - 48V DC
Shelly: No
Siemens LOGO!: No
Size of connection terminal in mm2: 4
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Deeplink

Manufacturer information

JUNG
Albrecht Jung GmbH & Co. KG
Volmestr. 1
58579 Schalksmühle
DE

kundencenter@jung.de
www.jung-group.com/de-DE/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.
