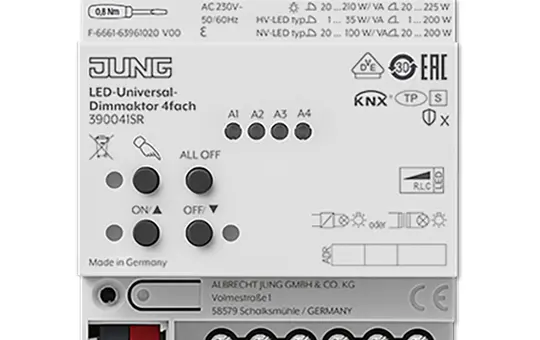

JUNG 390041SR KNX dimming actuator | 4-fold

Manufacturer: JUNG

Article no.: 20019579

EAN: 4011377179103

Manufacturer item number: 390041SR

Manufacturer type: 39004 1S R

Weight: 0,331 kg

In stock

Delivery: 2-3 business days

pcs

4 x 225 W, HV LED lamps typ. 4 x 1 ... 35 W (leading edge), 4 x 1 ... 200 W (trailing edge) 1 x 855 W REG enclosure 4 TE with electronic manual operation and LED status display

Planning and commissioning with ETS5 or newer ETS product family Lighting Product type Dimmer Intended use Switching and dimming of incandescent lamps, HV halogen lamps, dimmable HV LED lamps, dimmable compact fluorescent lamps, dimmable inductive transformers with LV halogen or LV LED lamps, dimmable electronic transformers with LV halogen or LV LED lamps Mounting on DIN EN 60715 mounting rail in sub-distribution board

Product features Outputs manually operable, construction site operation Feedback in manual operation and bus operation Locking of individual outputs by hand or bus Status feedback KNX Data Secure compatible from ETS 5.7.

Active power measurement: No
BAB-Tec: No
Blinds: No
Bluetooth: No
Brand: JUNG
Casambi: No
Class: Dimming actuators
DALI: No
Day/night function: No
Different phases can be connected: Yes
Dimming: Yes
Dimming method: Phase lead/edge
Division units: 4 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: Yes
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: 390041SR
Manufacturer type: 39004 1S R
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Series installation
Number of outputs: 4
Output current in mA: 15
Output power in W: 200
Parallel operation of channels possible: Yes
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
Size of connection terminal in mm2: 4
Switch: No
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Manufacturer information

JUNG
Albrecht Jung GmbH & Co. KG
Volmestr. 1
58579 Schalksmühle
DE

kundencenter@jung.de
www.jung-group.com/de-DE/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Active power measurement: No
BAB-Tec: No
Blinds: No
Bluetooth: No
Brand: JUNG
Casambi: No
Class: Dimming actuators
DALI: No
Day/night function: No
Different phases can be connected: Yes
Dimming: Yes
Dimming method: Phase lead/edge
Division units: 4 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: Yes
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: 390041SR
Manufacturer type: 39004 1S R
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Series installation
Number of outputs: 4
Output current in mA: 15
Output power in W: 200
Parallel operation of channels possible: Yes
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
Size of connection terminal in mm2: 4
Switch: No
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

Documents
