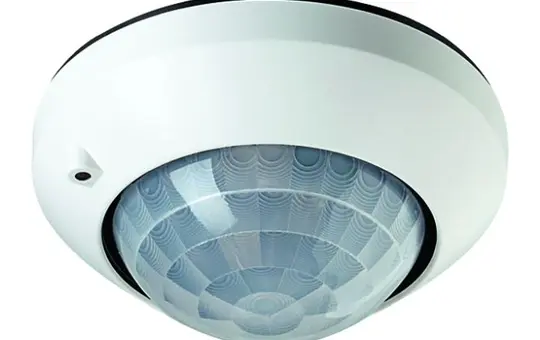

JUNG 3361-1WW KNX presence detector | Universal | alpine white

Manufacturer: JUNG

Article no.: 20016135

EAN: 4011377095489

Manufacturer item number: 3361-1WW

Manufacturer type: 3361-1 WW

Weight: 0,119 kg

Available on request

174,37 €

incl. VAT + shipping

pcs

with integrated bus coupler ETS product family Physical sensors Product type Motion detector Intended use Demand-based control of lighting, room thermostats and other electrical consumers in interior spaces Ceiling mounting on solid ceilings in a device box with dimensions according to DIN 49073 or surface-mounted housing Art. No.: PM-KAPPE-1 or

Brand: JUNG
Brightness sensor: Yes
Class: Presence detector
Color: white
Detection angle in °: 360
Detection area: circular
Detection area diameter in m: 20
Detection type/sensor type: Passive infrared
Different bus system: -
Frontal range in m: 2.50
Horizontal detection angle: 360
Installation height in m: 3.00
Installation location: Ceiling
Integrated constant light control: Yes
KNX: Yes
KNX-TP: Yes
Manufacturer item number: 3361-1WW
Manufacturer type: 3361-1 WW
Manufacturer's color: alpinweiß
Mounting type: Surface-mounted
Number of areas: 3
old Voltus number: 1393644
Reach laterally in m: 10.00
suitable for ceiling mounting: Yes
Supply voltage: 230V AC
Surface: glänzend
Temperature sensor: Yes
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Bedien- & Installationsanleitung

Manufacturer information

JUNG
Albrecht Jung GmbH & Co. KG
Volmestr. 1
58579 Schalksmühle
DE

kundencenter@jung.de
www.jung-group.com/de-DE/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: JUNG
Brightness sensor: Yes
Class: Presence detector
Color: white
Detection angle in °: 360
Detection area: circular
Detection area diameter in m: 20
Detection type/sensor type: Passive infrared
Different bus system: -
Frontal range in m: 2.50
Horizontal detection angle: 360
Installation height in m: 3.00
Installation location: Ceiling
Integrated constant light control: Yes
KNX: Yes
KNX-TP: Yes
Manufacturer item number: 3361-1WW
Manufacturer type: 3361-1 WW
Manufacturer's color: alpinweiß
Mounting type: Surface-mounted
Number of areas: 3
old Voltus number: 1393644
Reach laterally in m: 10.00
suitable for ceiling mounting: Yes
Supply voltage: 230V AC
Surface: glänzend
Temperature sensor: Yes
Type of transmission: Cable
